RSJ-3558S-1-NL
ActiveRDI, Inc.
3.5MM STEREO JACK
Deep-Dive with AI
Search across all available documentation for this part.
RSJ-3558S-1-NL
ActiveRDI, Inc.
3.5MM STEREO JACK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RSJ-3558S-1-NL |
|---|---|
| Actual Diameter [diameter] | 0.142 in |
| Actual Diameter [diameter] | 3.6 mm |
| Connector Type | Phone Jack, Dual |
| Features | Board Guide, Board Lock |
| Gender | Female |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Industry Recognized Mating Diameter | 0.141 " |
| Industry Recognized Mating Diameter | 0.125 " |
| Industry Recognized Mating Diameter | 3.5 mm |
| Insulation Color | Black |
| Mating Length/Depth | 0.551 in |
| Mating Length/Depth | 14 mm |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions/Contacts [custom] | 3 |
| Number of Positions/Contacts [custom] | 2 |
| Number of Positions/Contacts [custom] | 10 |
| Shielding | Shielded |
| Signal Lines | Stereo |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.89 | |
| 100 | $ 2.89 | |||
| 300 | $ 2.48 | |||
| 500 | $ 2.17 | |||
| 1500 | $ 1.93 | |||
| 2500 | $ 1.74 | |||
| 5000 | $ 1.58 | |||
| 10000 | $ 1.45 | |||
Description
General part information
RSJ-3558S-1-NL

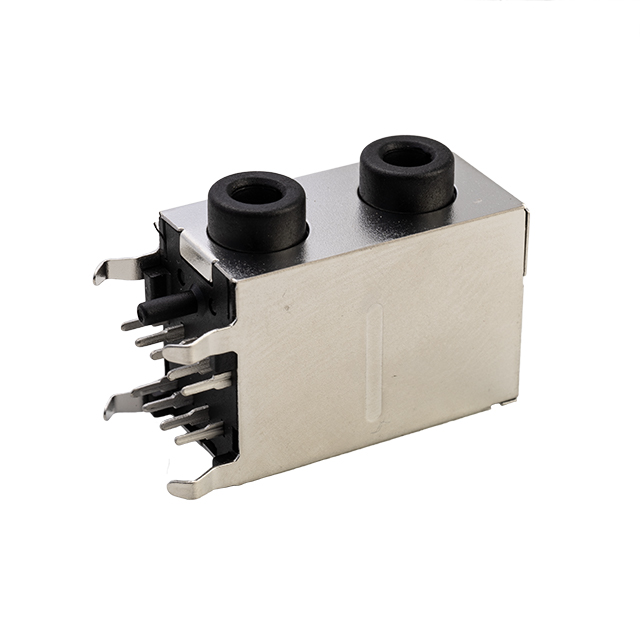

3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack, Dual Stereo (3 Conductor, TRS) Connector Solder
