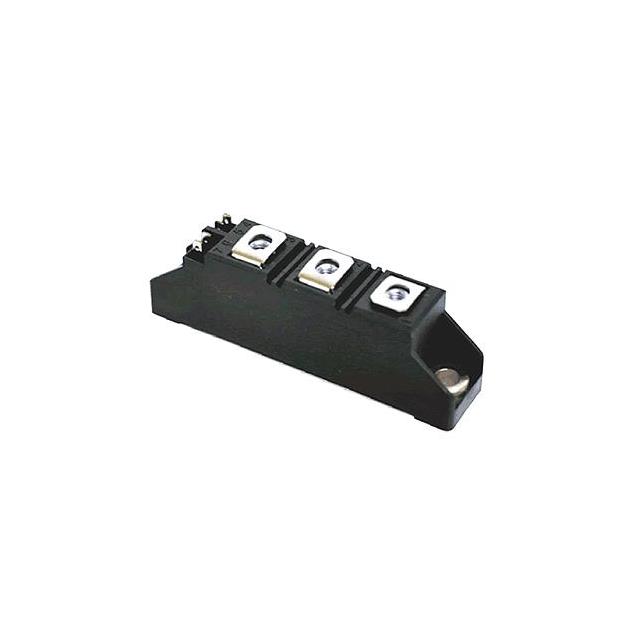

SCE90AA160
ActiveSanRex Corporation
SCR MODULE 1.6KV 140A MODULE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SCE90AA160
ActiveSanRex Corporation
SCR MODULE 1.6KV 140A MODULE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SCE90AA160 |
|---|---|
| Current - Gate Trigger (Igt) (Max) [Max] [x] | 100 mA |
| Current - Hold (Ih) (Max) | 160 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) [Max] | 2300 A |
| Current - Non Rep. Surge 50, 60Hz (Itsm) [Min] | 2100 A |
| Current - On State (It (AV)) (Max) [Max] | 90 A |
| Current - On State (It (RMS)) (Max) [Max] | 140 A |
| Mounting Type | Chassis Mount |
| Number of SCRs, Diodes | 1 |
| Operating Temperature [Max] | 130 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Structure | Series Connection - SCR/Diode |
| Voltage - Gate Trigger (Vgt) (Max) | 2.5 V |
| Voltage - Off State | 1.6 kV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 21 | $ 30.16 | |
Description
General part information
SCE90AA160
SCR Module 1.6 kV 140 A Series Connection - SCR/Diode Chassis Mount Module
