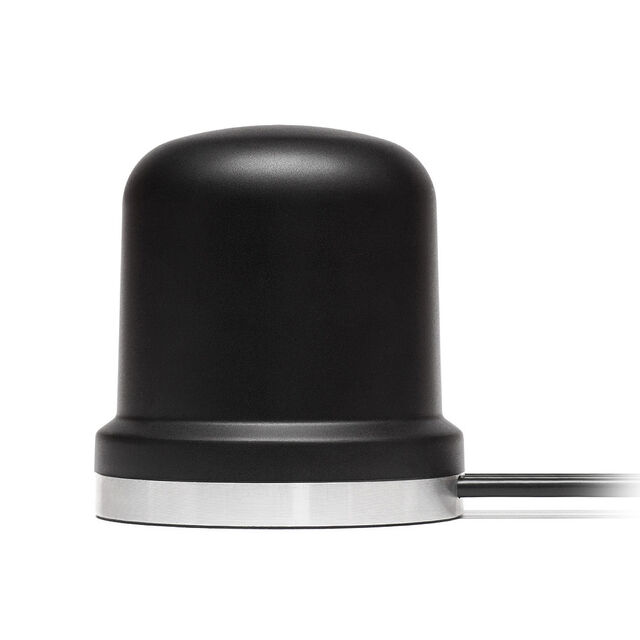

2J7083MC
Active2J Antennas
MEDUSA 4IN1 5GNR/4G/3G/2G MAG M
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2J7083MC
Active2J Antennas
MEDUSA 4IN1 5GNR/4G/3G/2G MAG M
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2J7083MC |
|---|---|
| Antenna Type | Dome |
| Applications | LPWA, 3G, CBRS, 2G, CAT-M, NB-IoT, LTE, NR, 4G, 5G, IoT |
| Features | Cable |
| Features | 3 m |
| Frequency (Center/Band) | 788.5 MHz, 4.15 GHz, 5.537 GHz, 2.058 GHz |
| Frequency Group | Wide Band |
| Frequency Range [Max] | 5.925 GHz, 960 MHz, 5 GHz, 2.69 GHz |
| Frequency Range [Min] | 1.427 GHz, 3.3 GHz, 5.15 GHz, 617 MHz |
| Gain | -1.2 dBi, 3.9 dBi, 4.4 dBi, 5.1 dBic |
| Height (Max) [Max] | 102 mm |
| Height (Max) [Max] | 4.016 in |
| Ingress Protection | IK09, IP67, IP69 |
| Mounting Type | Magnetic |
| Number of Bands | 4 |
| Power - Max [Max] | 25 W |
| Return Loss | -7.6 dB, -10.5 dB, -4.8 dB, -9.7 dB |
| RF Family/Standard | Cellular |
| VSWR | 4.6, 2.4, 2.2, 2.7 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 179.23 | |
| 10 | $ 169.93 | |||
Description
General part information
2J7083MC
RF ANTENNA 2G, 3G, 4G, 5G, Cat-M, CBRS, IoT, LPWA, LTE, NB-IoT, NR Dome SMA Male Magnetic
