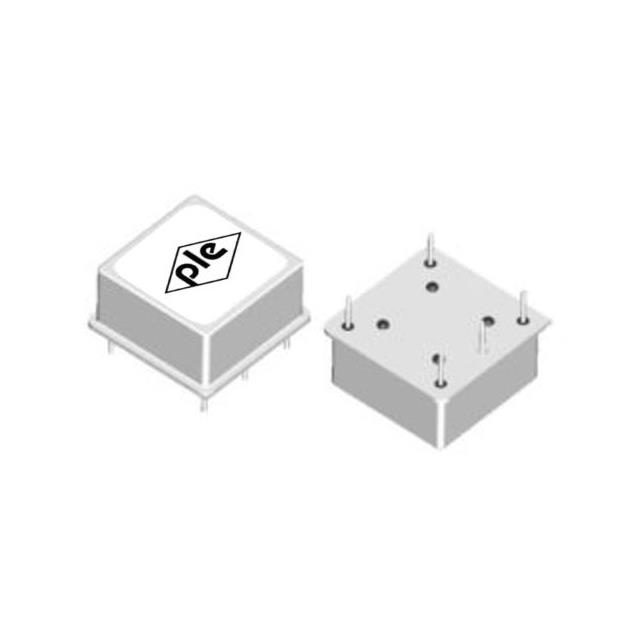

OLA5007-100.0M
ActivePletronics
XTAL OSC OCXO 100.0M SNWV
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
OLA5007-100.0M
ActivePletronics
XTAL OSC OCXO 100.0M SNWV
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | OLA5007-100.0M |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) [Max] | 950 mA |
| Frequency | 100 MHz |
| Frequency Stability | 50 ppb |
| Function | Low-G Sensitivity |
| Height - Seated (Max) [Max] [z] | 12.7 mm |
| Height - Seated (Max) [Max] [z] | 0.5 in |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | Sine Wave |
| Package / Case | 6-DIP |
| Package / Case | 19.05 mm, 0.75 in, 5 Leads |
| Size / Dimension [x] | 25.78 mm |
| Size / Dimension [x] | 1.015 in |
| Size / Dimension [y] | 1.015 in |
| Size / Dimension [y] | 25.78 mm |
| Type | OCXO |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 2083.12 | |
Description
General part information
OLA5007-100.0M
100 MHz OCXO Sine Wave Oscillator 5V Low-G Sensitivity 6-DIP (0.750", 19.05mm), 5 Leads
