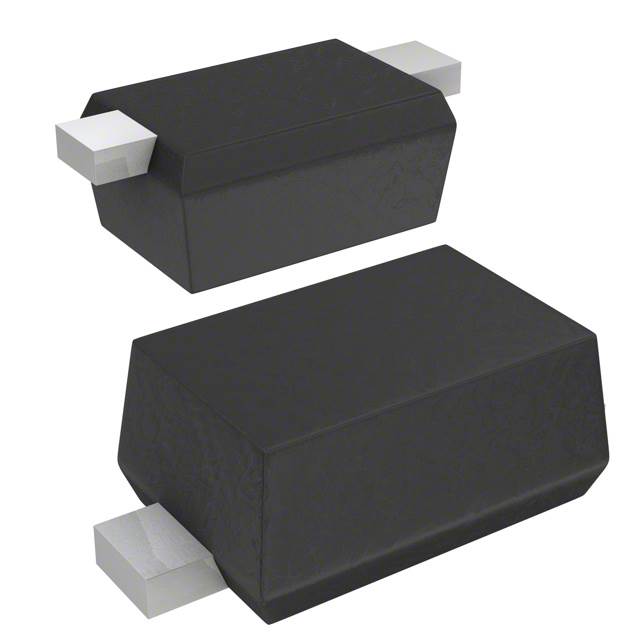

BZX584C75-AU_R1_000A1
ActivePanjit International Inc.
SURFACE MOUNT SILICON ZENER DIOD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BZX584C75-AU_R1_000A1
ActivePanjit International Inc.
SURFACE MOUNT SILICON ZENER DIOD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BZX584C75-AU_R1_000A1 |
|---|---|
| Current - Reverse Leakage @ Vr | 100 nA |
| Grade | Automotive |
| Impedance (Max) (Zzt) [Max] | 250 Ohms |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | SC-79, SOD-523 |
| Power - Max [Max] | 200 mW |
| Qualification | AEC-Q101 |
| Supplier Device Package | SOD-523 |
| Tolerance | 5 % |
| Voltage - Zener (Nom) (Vz) | 75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.21 | |
| 10 | $ 0.13 | |||
| 100 | $ 0.08 | |||
| 500 | $ 0.06 | |||
| 1000 | $ 0.05 | |||
| 2000 | $ 0.05 | |||
| Digi-Reel® | 1 | $ 0.21 | ||
| 10 | $ 0.13 | |||
| 100 | $ 0.08 | |||
| 500 | $ 0.06 | |||
| 1000 | $ 0.05 | |||
| 2000 | $ 0.05 | |||
| Tape & Reel (TR) | 5000 | $ 0.04 | ||
| 10000 | $ 0.04 | |||
| 15000 | $ 0.03 | |||
| 25000 | $ 0.03 | |||
| 35000 | $ 0.03 | |||
| 50000 | $ 0.03 | |||
| 125000 | $ 0.03 | |||
| 250000 | $ 0.02 | |||
Description
General part information
BZX584C75-AU_R1_000A1
Zener Diode 75 V 200 mW ±5% Surface Mount SOD-523
Documents
Technical documentation and resources
