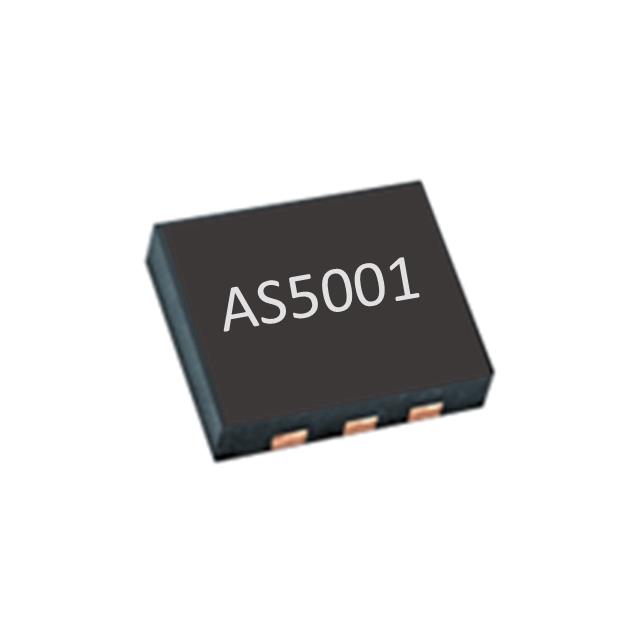

5001CAA156M2500BBIR
ActiveAeonsemi, Inc
MEMS OSC XO 156.2500MHZ LVDS SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5001CAA156M2500BBIR
ActiveAeonsemi, Inc
MEMS OSC XO 156.2500MHZ LVDS SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 5001CAA156M2500BBIR |
|---|---|
| Base Resonator | MEMS |
| Current - Supply (Disable) (Max) [Max] | 50 mA |
| Current - Supply (Max) [Max] | 55 mA |
| Frequency | 156.25 MHz |
| Frequency Stability | 35 ppm |
| Function | Enable/Disable |
| Height - Seated (Max) [Max] [z] | 0.035 " |
| Height - Seated (Max) [Max] [z] | 0.9 mm |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | LVDS |
| Package / Case | 6-VDFN |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [y] | 2.5 mm |
| Size / Dimension [y] | 0.098 in |
| Type | XO (Standard) |
| Voltage - Supply | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2500 | $ 2.93 | |
| 10000 | $ 2.70 | |||
Description
General part information
5001CAA156M2500BBIR
156.25 MHz XO (Standard) LVDS Oscillator 1.8V Enable/Disable 6-VDFN
