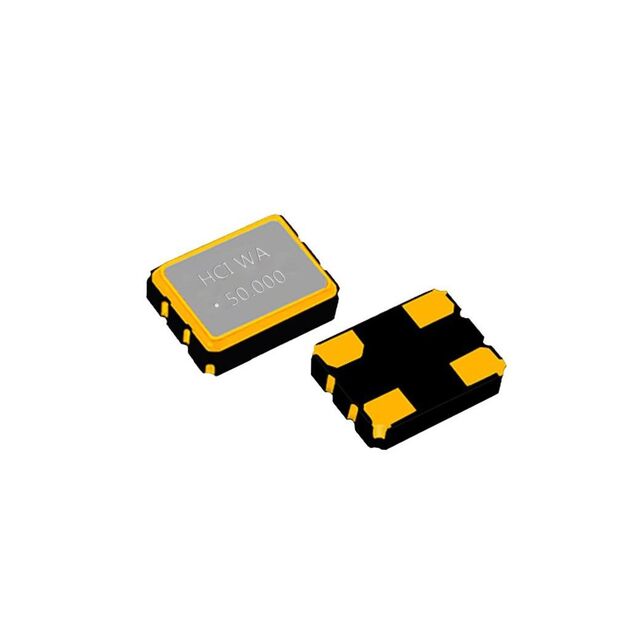

1532H-33.000J33DTSK
ActiveSuzhou Hangjing Elec&Tech Co.,Ltd
XTAL OSC XO 33MHZ 3.3V HCMOS SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1532H-33.000J33DTSK
ActiveSuzhou Hangjing Elec&Tech Co.,Ltd
XTAL OSC XO 33MHZ 3.3V HCMOS SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1532H-33.000J33DTSK |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) [Max] | 15 mA |
| Frequency | 33 MHz |
| Frequency Stability | 30 ppm |
| Function | Enable/Disable |
| Height - Seated (Max) [Max] | 1.2 mm |
| Height - Seated (Max) [Max] | 0.047 in |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | HCMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [y] | 2.5 mm |
| Size / Dimension [y] | 0.098 in |
| Type | XO (Standard) |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 10 | $ 0.78 | |
| 100 | $ 0.67 | |||
| 500 | $ 0.63 | |||
| 1000 | $ 0.60 | |||
| 3000 | $ 0.59 | |||
| Tape & Reel (TR) | 3000 | $ 0.59 | ||
Description
General part information
1532H-33.000J33DTSK
33 MHz XO (Standard) HCMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
