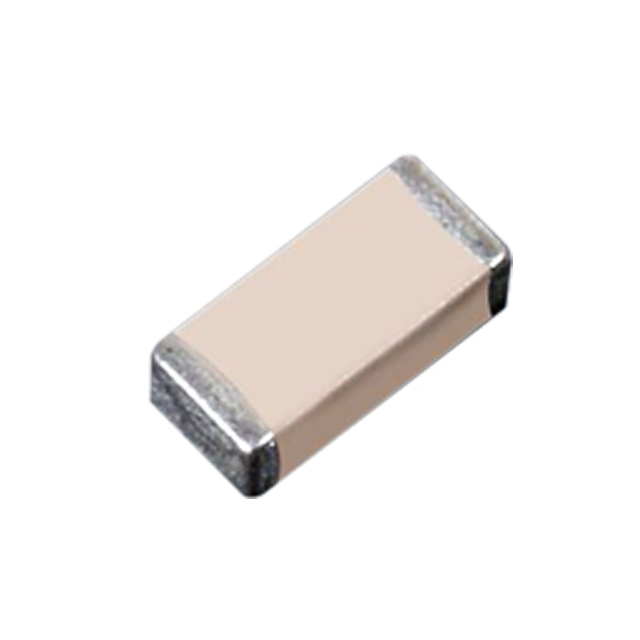

NMC0805X7R103K50TRPF
ActiveNIC Components Corp
CAP SMT08050.01F50VDC
Deep-Dive with AI
Search across all available documentation for this part.
NMC0805X7R103K50TRPF
ActiveNIC Components Corp
CAP SMT08050.01F50VDC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NMC0805X7R103K50TRPF |
|---|---|
| Applications | General Purpose |
| Capacitance | 10000 pF |
| Features | Low ESL, Low ESR |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0805 |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [x] | 0.079 in |
| Size / Dimension [y] | 0.049 in |
| Size / Dimension [y] | 1.25 mm |
| Temperature Coefficient | X7R |
| Thickness (Max) [Max] | 1.35 mm |
| Thickness (Max) [Max] | 0.053 in |
| Tolerance | 10 % |
| Voltage - Rated | 50 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.21 | |
| 10 | $ 0.13 | |||
| 50 | $ 0.08 | |||
| 100 | $ 0.07 | |||
| 500 | $ 0.05 | |||
| 1000 | $ 0.04 | |||
| Digi-Reel® | 1 | $ 0.21 | ||
| 10 | $ 0.13 | |||
| 50 | $ 0.08 | |||
| 100 | $ 0.07 | |||
| 500 | $ 0.05 | |||
| 1000 | $ 0.04 | |||
| Tape & Reel (TR) | 4000 | $ 0.04 | ||
| 8000 | $ 0.03 | |||
| 12000 | $ 0.03 | |||
| 20000 | $ 0.03 | |||
| 28000 | $ 0.03 | |||
| 40000 | $ 0.03 | |||
| 100000 | $ 0.03 | |||
| 200000 | $ 0.03 | |||
| 400000 | $ 0.02 | |||
Description
General part information
NMC0805X7R103K50TRPF
10000 pF ±10% 50V Ceramic Capacitor X7R 0805 (2012 Metric)
