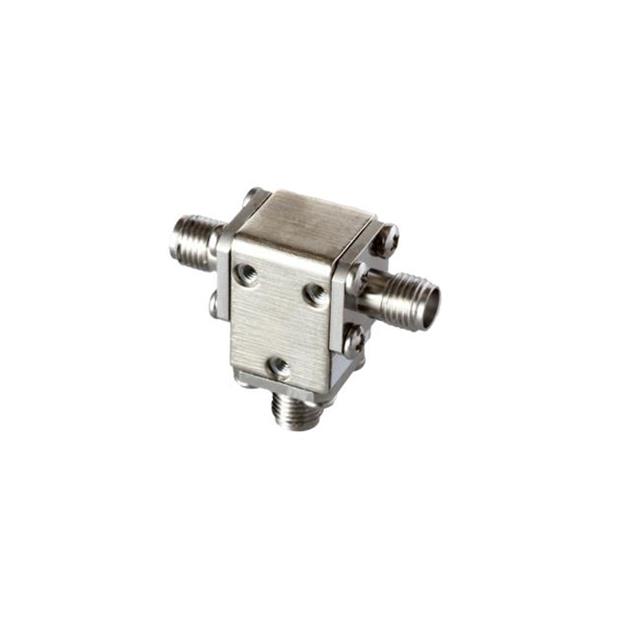

DVC1722-2
ActiveDiTom Microwave
17.30 - 22.00 GHZ TVAC CIRCULATO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DVC1722-2
ActiveDiTom Microwave
17.30 - 22.00 GHZ TVAC CIRCULATO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DVC1722-2 |
|---|---|
| Connector Type | SMA-FEMALE, SMA-MALE |
| Frequency [Max] | 22 GHz |
| Frequency [Min] | 17.3 GHz |
| Insertion Loss | 0.5 dB |
| Isolation [Min] | 20 dB |
| Package / Case | Module, SMA Connectors |
| Power - Average Forward | 10 W |
| Supplier Device Package | Module |
| Type | Circulator |
| VSWR | 1.25 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1020.91 | |
Description
General part information
DVC1722-2
17.30 - 22.00 GHZ TVAC CIRCULATO
