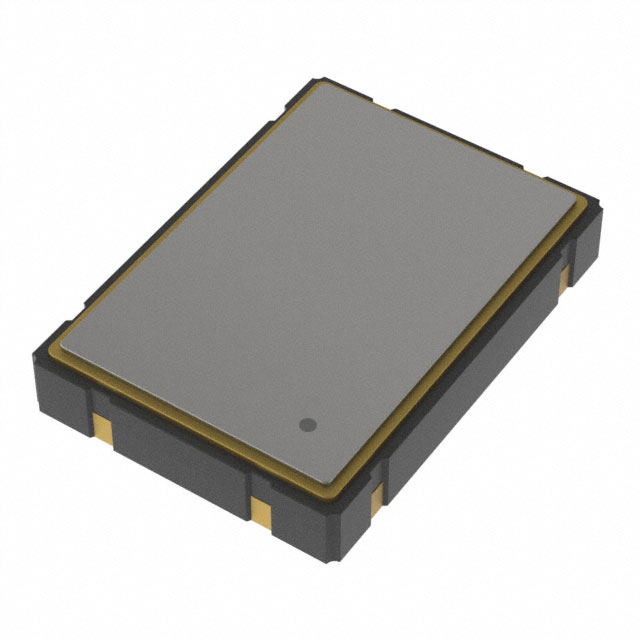

CA70C1202PLT
ActiveTusonix a Subsidiary of CTS Electronic Components
XTAL OSC XO 12.0000MHZ HCMOS TTL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CA70C1202PLT
ActiveTusonix a Subsidiary of CTS Electronic Components
XTAL OSC XO 12.0000MHZ HCMOS TTL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CA70C1202PLT |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Disable) (Max) [Max] | 10 ÁA |
| Current - Supply (Max) [Max] | 40 mA |
| Frequency | 12 MHz |
| Frequency Stability | 100 ppm |
| Function | Enable/Disable |
| Height - Seated (Max) [Max] | 1.4 mm |
| Height - Seated (Max) [Max] | 0.055 in |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Output | HCMOS, TTL |
| Package / Case | 4-SMD, No Lead |
| Ratings | AEC-Q200 |
| Size / Dimension [x] | 7 mm |
| Size / Dimension [x] | 0.276 " |
| Size / Dimension [y] | 5 mm |
| Size / Dimension [y] | 0.197 " |
| Type | XO (Standard) |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1000 | $ 1.67 | |
Description
General part information
CA70C1202PLT
12 MHz XO (Standard) HCMOS, TTL Oscillator 3.3V Enable/Disable 4-SMD, No Lead
