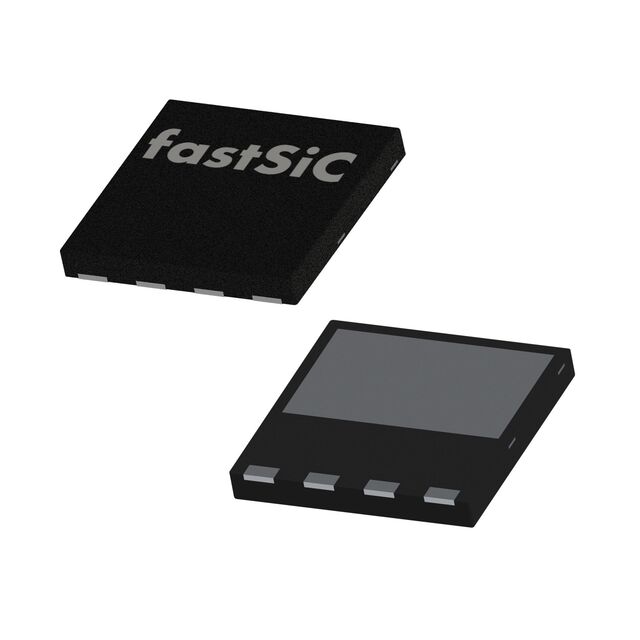

FL06150G
ActivefastSiC
SICFET N-CH 650V 15A PDFN8X8
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FL06150G
ActivefastSiC
SICFET N-CH 650V 15A PDFN8X8
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FL06150G |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 15 A |
| Drain to Source Voltage (Vdss) | 650 V |
| Drive Voltage (Max Rds On, Min Rds On) | 15 V |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 29.5 nC |
| Input Capacitance (Ciss) (Max) @ Vds | 672 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 175 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 4-PowerTSFN |
| Power Dissipation (Max) | 68 W |
| Rds On (Max) @ Id, Vgs | 150 mOhm |
| Supplier Device Package | 4-PDFN (8x8) |
| Technology | SiC (Silicon Carbide Junction Transistor) |
| Vgs (Max) [Max] | 15 V |
| Vgs(th) (Max) @ Id | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1 | $ 5.50 | |
| 10 | $ 2.02 | |||
| 100 | $ 1.88 | |||
| 3000 | $ 1.83 | |||
Description
General part information
FL06150G
N-Channel 650 V 15A (Tc) 68W (Tc) Surface Mount 4-PDFN (8x8)
