Technical Specifications
Parameters and characteristics for this part
| Specification | P6SMBJ51A_R1_00001 |
|---|---|
| Applications | General Purpose |
| Current - Peak Pulse (10/1000µs) | 7.3 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |

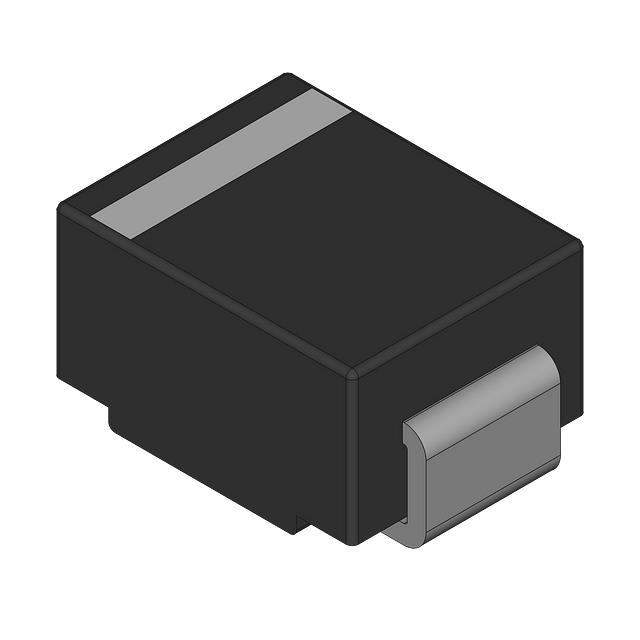

| Package / Case | SMB, DO-214AA |
| Power - Peak Pulse | 600 W |
| Power Line Protection | False |
| Supplier Device Package | SMB |
| Supplier Device Package | DO-214AA |
| Type | Zener |
| Unidirectional Channels [custom] | 1 |
| Voltage - Clamping (Max) @ Ipp | 82.4 V |
| Voltage - Reverse Standoff (Typ) | 51 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.51 | |
| 10 | $ 0.31 | |||
| 100 | $ 0.20 | |||
| Digi-Reel® | 1 | $ 0.51 | ||
| 10 | $ 0.31 | |||
| 100 | $ 0.20 | |||
| Tape & Reel (TR) | 800 | $ 0.10 | ||
| 1600 | $ 0.09 | |||
| 2400 | $ 0.08 | |||
| 4000 | $ 0.08 | |||
Description
General part information
P6SMBJ51A_R1_00001
82.4V Clamp 7.3A Ipp Tvs Diode Surface Mount DO-214AA (SMB)
