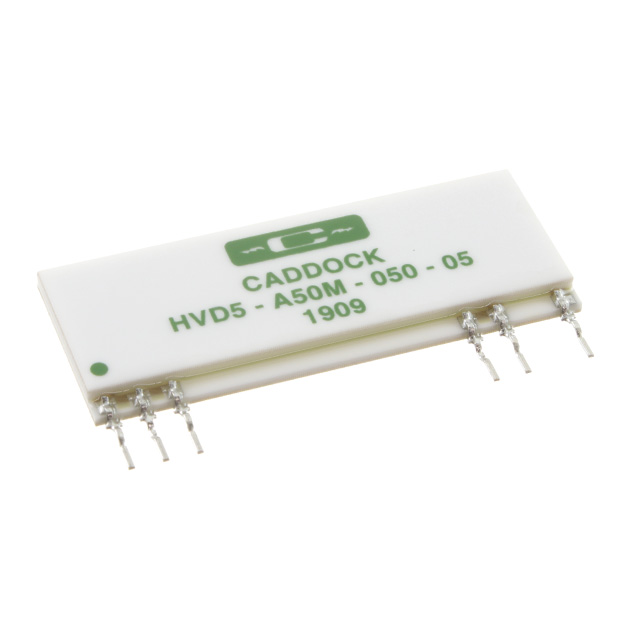

HVD5-A50M-050-05
ActiveCaddock Electronics Inc.
VOLTAGE DIVIDER
Deep-Dive with AI
Search across all available documentation for this part.
HVD5-A50M-050-05
ActiveCaddock Electronics Inc.
VOLTAGE DIVIDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HVD5-A50M-050-05 |
|---|---|
| Applications | Voltage Divider (TCR Matched) |
| Circuit Type | Voltage Divider |
| Height - Seated (Max) | 15.5 mm |
| Height - Seated (Max) [Max] | 0.61 " |
| Mounting Type | Through Hole |
| Number of Pins [custom] | 6 |
| Number of Resistors | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 15-SIP, 6 Leads |
| Power Per Element | 31 mW |
| Resistance (Ohms) | 50 k, 49.95 M |
| Resistor Matching Ratio | 0.05 % |
| Resistor-Ratio-Drift | ±5ppm/°C |
| Temperature Coefficient | 30 ppm/°C |
| Tolerance | 0.1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 81.62 | |
| 10 | $ 53.67 | |||
| 25 | $ 50.11 | |||
Description
General part information
HVD5-A50M-050-05
50k, 49.95M Ohm ±0.1% 31mW Power Per Element Voltage Divider 2 Resistor Network/Array ±30ppm/°C 15-SIP, 6 Leads
Documents
Technical documentation and resources
No documents available
