F6N0.38OR75
ActiveTechflex

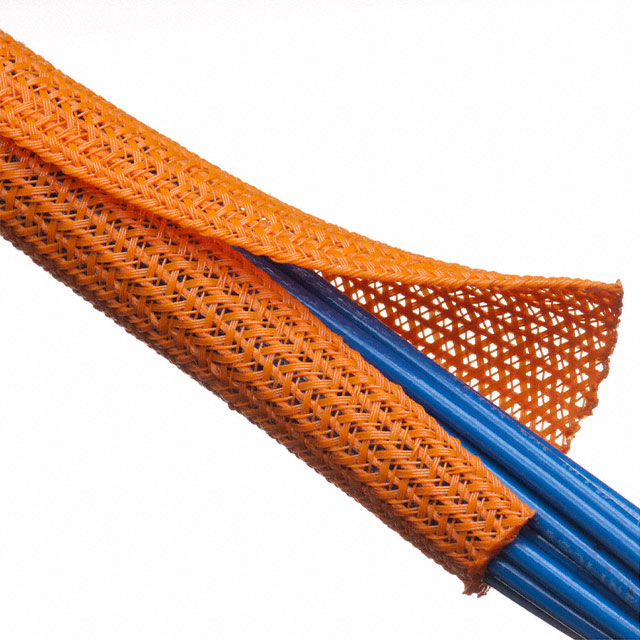

SELF WRAP 3/8" X 75' ORANGE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
F6N0.38OR75
ActiveTechflex
SELF WRAP 3/8" X 75' ORANGE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | F6N0.38OR75 |
|---|---|
| Abrasion Protection | Abrasion and Cut Resistant |
| Diameter - Inside, Non-Expanded [diameter] | 0.375 in |
| Diameter - Inside, Non-Expanded [diameter] | 9.53 mm |
| Features | Clean Cut, Chemical Resistant |
| Length [x] | 22.86 m |
| Length [x] | 75 ft |
| Material | Polyethylene Terephthalate (PET), Halogen Free |
| Material Flammability Rating | UL94 V-0 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -70 °C |
| Type | Self Wrap |
| Type Attributes | Split Flexible Tube |
| Wall Thickness [custom] | 0.025 in |
| Wall Thickness [custom] | 0.64 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
F6N0.38OR75
Self Wrap X 75.00' (22.86m) Orange
