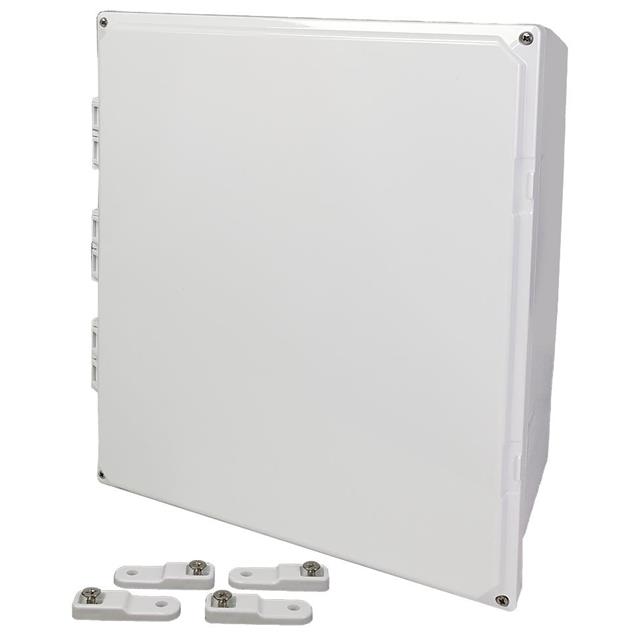

H161407H-6P-WHT
ActiveIntegra Enclosures
ENCLOSURE PLAS 16.7"L X 14.7"W
Deep-Dive with AI
Search across all available documentation for this part.
H161407H-6P-WHT
ActiveIntegra Enclosures
ENCLOSURE PLAS 16.7"L X 14.7"W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | H161407H-6P-WHT |
|---|---|
| Area (L x W) | 245 in² |
| Area (L x W) | 1584 cm² |
| Color | White, Opaque Cover/Door |
| Container Type | Enclosure |
| Design | Hinged Door, Lid |
| Height | 212.85 mm |
| Height [z] | 8.38 in |
| Material | Plastic, Polycarbonate (PC) |
| Material Flammability Rating | UL94 V-0 |
| Ratings | NEMA 6P, IP66, NEMA 4X, IP68 |
| Size / Dimension [x] | 16.7 " |
| Size / Dimension [x] | 424.18 mm |
| Size / Dimension [y] | 14.7 " |
| Size / Dimension [y] | 373.38 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 181.26 | |
| 5 | $ 154.89 | |||
| 10 | $ 152.25 | |||
Description
General part information
H161407H-6P-WHT
Enclosure Plastic, Polycarbonate (PC) White, Opaque Cover/Door Hinged Door, Lid 16.700" L x 14.700" W (424.18mm x 373.38mm) X 8.380" (212.85mm)
Documents
Technical documentation and resources
No documents available
