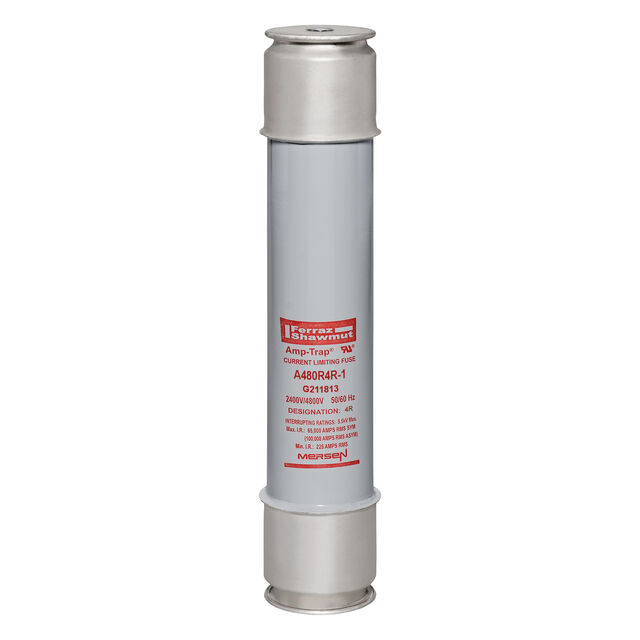

A480R4R-1
ActiveMersen USA Newburyport-MA L.L.C.
FUSE,MOTOR PROTECTION,FERRULE MO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A480R4R-1
ActiveMersen USA Newburyport-MA L.L.C.
FUSE,MOTOR PROTECTION,FERRULE MO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A480R4R-1 |
|---|---|
| Applications | Motor Protection |
| Breaking Capacity @ Rated Voltage | 65 kA |
| Current Rating (Amps) | 4 A |
| Fuse Type | Cartridge |
| Mounting Type | Requires Holder |
| Package / Case | Cartridge, Non-Standard |
| Response Time | Fast Blow |
| Size / Dimension [diameter] | 3 " |
| Size / Dimension [diameter] | 76.2 mm |
| Size / Dimension [x] | 403 mm |
| Size / Dimension [x] | 15.866 in |
| Voltage Rating - AC | 4.8 kVAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 728.23 | |
| 5 | $ 602.97 | |||
| 10 | $ 555.46 | |||
Description
General part information
A480R4R-1
4A 4.8 kVAC Fuse Cartridge Requires Holder
