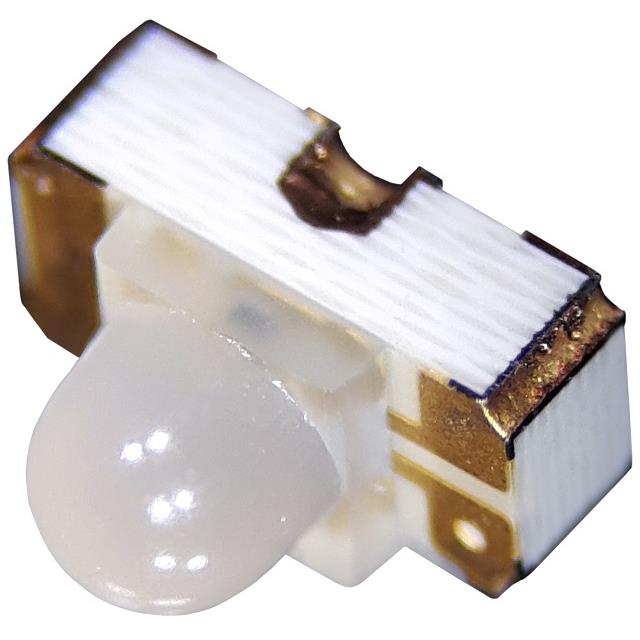

B2592UONG20C0002L2U1930
ActiveHarvatek Corporation
LED GREEN/RED CLEAR 1210 SMD R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
B2592UONG20C0002L2U1930
ActiveHarvatek Corporation
LED GREEN/RED CLEAR 1210 SMD R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | B2592UONG20C0002L2U1930 |
|---|---|
| Color | Red, Green |
| Configuration | Common Anode |
| Current - Test | 20 mA, 20 mA |
| Height (Max) [Max] | 1.7 mm |
| Lens Size [diameter] | 1.62 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating [custom] | 285 mcd |
| Millicandela Rating [custom] | 45 mcd |
| Mounting Type | Surface Mount, Right Angle |
| Package / Case | 1210 |
| Package / Case | 3225 Metric |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 2.55 mm |
| Supplier Device Package | 1210 |
| Viewing Angle | 154 °, 120 °, 20 ° |
| Voltage - Forward (Vf) (Typ) | 2 V, 3.3 V |
| Wavelength - Dominant | 631 nm, 525 nm |
| Wavelength - Peak [custom] | 639 nm |
| Wavelength - Peak [custom] | 520 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.35 | |
| Digi-Reel® | 1 | $ 0.35 | ||
| Tape & Reel (TR) | 2000 | $ 0.34 | ||
Description
General part information
B2592UONG20C0002L2U1930
Green, Red 525nm Green, 631nm Red LED Indication - Discrete 3.3V Green, 2V Red 1210 (3225 Metric)
