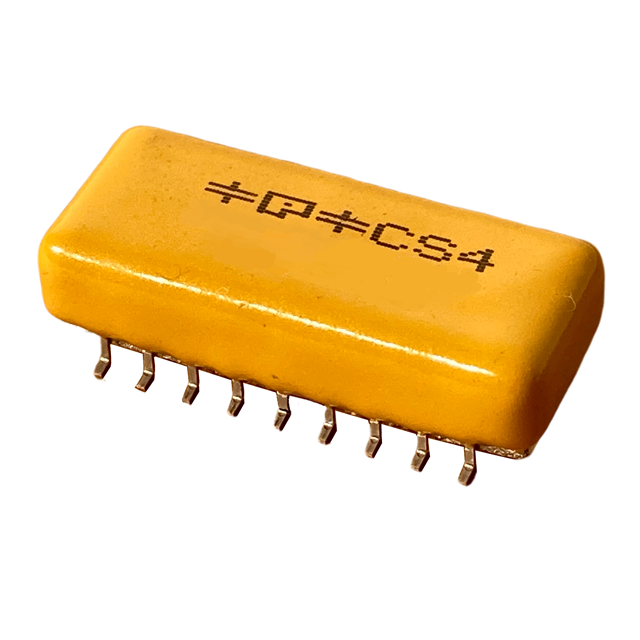

206K050CS4G
ActivePaktron
CAPACITOR MLP 20UF 50V SMD
Deep-Dive with AI
Search across all available documentation for this part.
206K050CS4G
ActivePaktron
CAPACITOR MLP 20UF 50V SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 206K050CS4G |
|---|---|
| Applications | High Pulse, EMI, DV/DT, RFI Suppression |
| Capacitance | 20 µF |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | 3 mOhm |
| Height - Seated (Max) [Max] [z] | 0.319 " |
| Height - Seated (Max) [Max] [z] | 8.1 mm |
| Lead Spacing | 0.394 in |
| Lead Spacing | 10 mm |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 18-SMD, Gull Wing |
| Size / Dimension [x] | 29.2 mm |
| Size / Dimension [x] | 1.15 " |
| Size / Dimension [y] | 0.5 in |
| Size / Dimension [y] | 12.7 mm |
| Termination | Gull Wing |
| Tolerance | 10 % |
| Voltage Rating - AC | 35 V |
| Voltage Rating - DC | 50 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 65.28 | |
| 10 | $ 63.00 | |||
Description
General part information
206K050CS4G
20 µF Film Capacitor 35V 50V Polyester, Metallized 18-SMD, Gull Wing
Documents
Technical documentation and resources
No documents available
