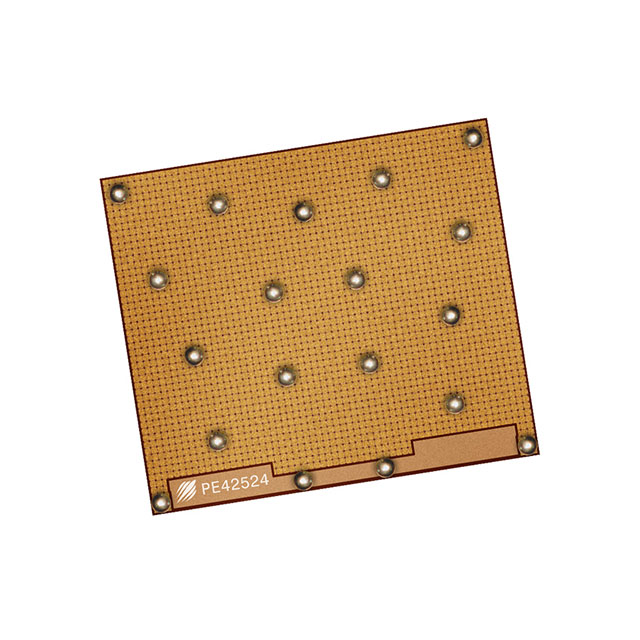

PE42524B-X
ActivepSemi Corporation
IC RF SWITCH SPDT 40GHZ DIE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PE42524B-X
ActivepSemi Corporation
IC RF SWITCH SPDT 40GHZ DIE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PE42524B-X |
|---|---|
| Circuit | SPDT |
| Frequency Range [Max] | 40 GHz |
| Frequency Range [Min] | 10 MHz |
| IIP3 | 50 dBm |
| Impedance | 50 Ohms |
| Insertion Loss | 5.5 dB |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Die |
| Supplier Device Package | Die |
| Test Frequency | - |
| Test Frequency | 40 GHz |
| Topology | Reflective |
| Voltage - Supply [Max] | 3.5 V |
| Voltage - Supply [Min] | 3.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PE42524B-X
RF Switch IC SPDT 40 GHz 50Ohm Die
Documents
Technical documentation and resources
