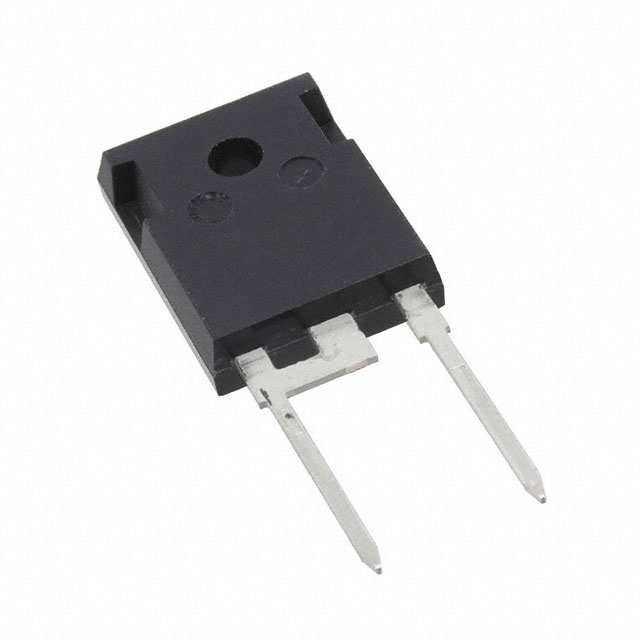

GP2D020A120B
UnknownSemiQ
DIODE SIL CARB 1.2KV 20A TO247-2
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GP2D020A120B
UnknownSemiQ
DIODE SIL CARB 1.2KV 20A TO247-2
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GP2D020A120B |
|---|---|
| Capacitance @ Vr, F | 1270 pF |
| Current - Reverse Leakage @ Vr | 40 µA |
| Mounting Type | Through Hole |
| Operating Temperature - Junction [Max] | 175 ░C |
| Operating Temperature - Junction [Min] | -55 C |
| Package / Case | TO-247-2 |
| Reverse Recovery Time (trr) | 0 ns |
| Speed | No Recovery Time |
| Supplier Device Package | TO-247-2 |
| Technology | SiC (Silicon Carbide) Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 1.2 kV |
| Voltage - Forward (Vf) (Max) @ If | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
GP2D020A120B
Diode 1200 V 20A Through Hole TO-247-2
