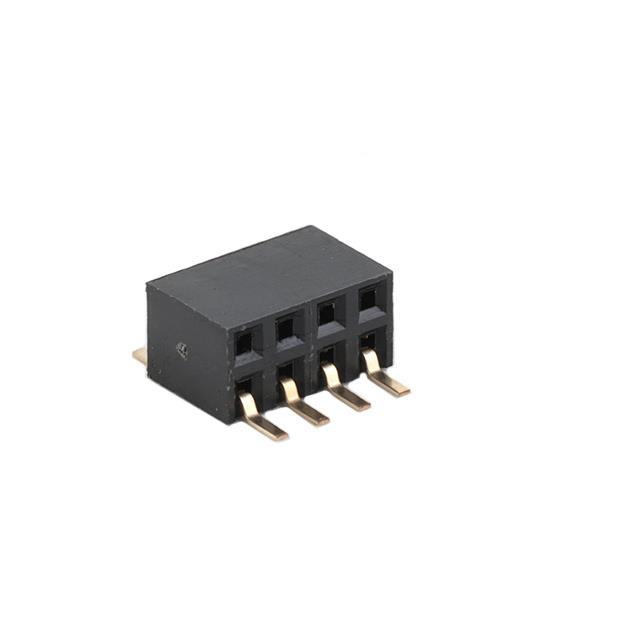

CSFC219-0402A001R1AD
ActiveGreenconn
2.00MM HEADER FEMALE DUAL ROWS S
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CSFC219-0402A001R1AD |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish Thickness - Post | Flash |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Current Rating (Amps) | 2 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height [custom] | 0.157 in |
| Insulation Height [custom] | 4 mm |
| Insulation Material | Halogen Free, Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 8 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Row Spacing - Mating | 0.079 in |
| Row Spacing - Mating | 2 mm |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.39 | |
| 10 | $ 1.06 | |||
| 100 | $ 0.81 | |||
| Digi-Reel® | 1 | $ 1.39 | ||
| 10 | $ 1.06 | |||
| 100 | $ 0.81 | |||
| Tape & Reel (TR) | 900 | $ 0.64 | ||
| 1800 | $ 0.60 | |||
| 2700 | $ 0.57 | |||
| 4500 | $ 0.55 | |||
| 6300 | $ 0.53 | |||
| 9000 | $ 0.51 | |||
Description
General part information
CSFC219-0402A001R1AD
Connector Header Surface Mount 8 position 0.079" (2.00mm)
