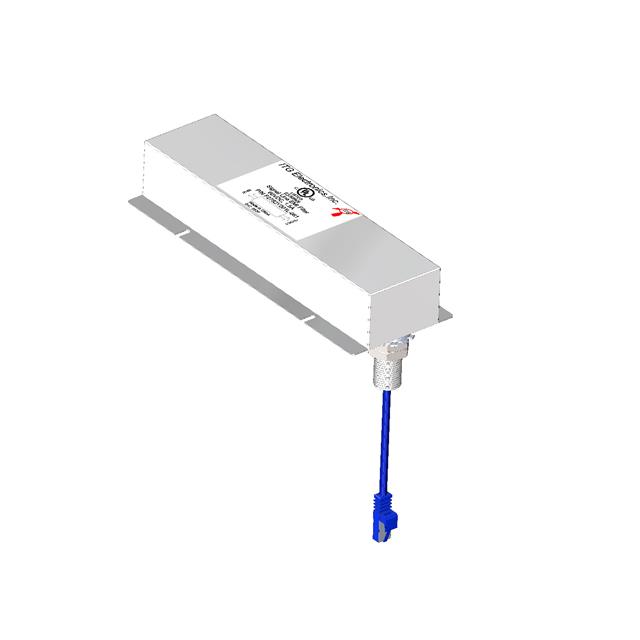

F2782Y001L-051
ActiveITG Electronics, Inc.
1 CHANNEL 1.5A CAT5 DATA LINE AN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
F2782Y001L-051
ActiveITG Electronics, Inc.
1 CHANNEL 1.5A CAT5 DATA LINE AN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | F2782Y001L-051 |
|---|---|
| Applications | Data Lines for Mobile Devices |
| Attenuation Value | 100 dB |
| Current | 1.5 A |
| ESD Protection | False |
| Filter Order | 5th |
| Height [z] | 2.047 in |
| Height [z] | 52 mm |
| Mounting Type | Chassis Mount |
| Number of Channels | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | Module |
| Size / Dimension [x] | 284 mm |
| Size / Dimension [x] | 11.181 in |
| Size / Dimension [y] | 3.937 in |
| Size / Dimension [y] | 100 mm |
| Technology | LC (T-Type) |
| Type | Low Pass |
| Voltage - Rated | 60 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 460.00 | |
| 4 | $ 440.00 | |||
Description
General part information
F2782Y001L-051
LC (T-Type) EMI Filter 5th Order Low Pass 1 Channel 1.5 A Module
