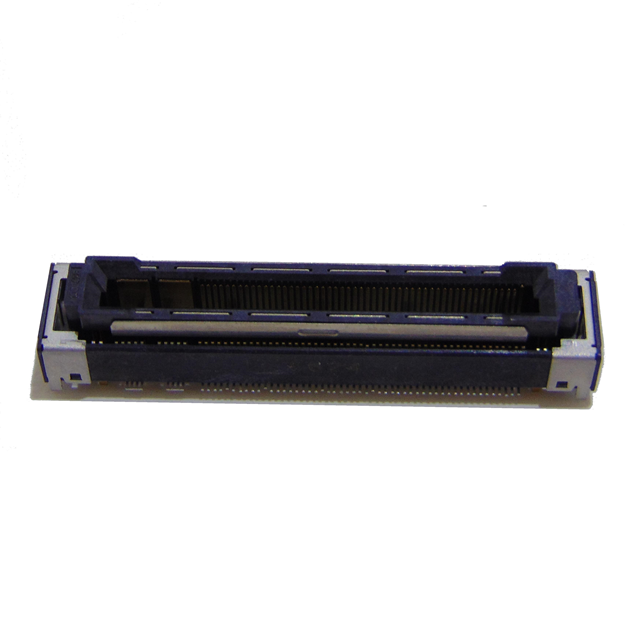

HF301S-106-1800-4011-VE
ActiveYamaichi Electronics
AUTO, FLOAT BOARD TO BOARD, RECE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HF301S-106-1800-4011-VE
ActiveYamaichi Electronics
AUTO, FLOAT BOARD TO BOARD, RECE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HF301S-106-1800-4011-VE |
|---|---|
| Connector Type | Receptacle, Outer Shroud Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 4 Áin |
| Contact Finish Thickness | 0.1 Ám |
| Features | Pick and Place, Board Guide, Solder Retention |
| Height Above Board [z] | 15.6 mm |
| Height Above Board [z] | 0.614 " |
| Mated Stacking Heights | 18 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 106 |
| Number of Rows | 2 |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Box (TB) | 1 | $ 9.95 | |
| 10 | $ 9.52 | |||
| 25 | $ 9.12 | |||
| 50 | $ 8.75 | |||
Description
General part information
HF301S-106-1800-4011-VE
106 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold
