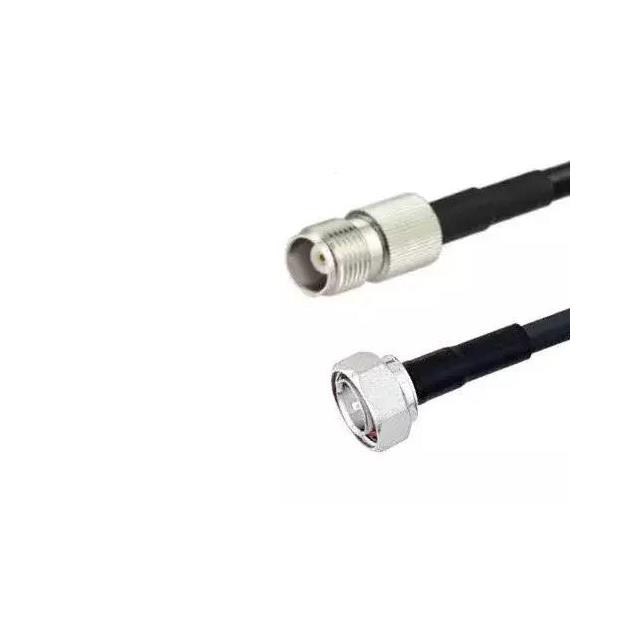

RG214-LSZH-716M-TF(QTY:50ft)
ActiveMcGill Microwave Systems
RG214-LSZH CABLE ASSY 50FT 716M
Deep-Dive with AI
Search across all available documentation for this part.
RG214-LSZH-716M-TF(QTY:50ft)
ActiveMcGill Microwave Systems
RG214-LSZH CABLE ASSY 50FT 716M
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RG214-LSZH-716M-TF(QTY:50ft) |
|---|---|
| 1st Connector | 7/16 Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | TNC Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-214 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Features | Shielded |
| Frequency - Max [Max] | 1.1 GHz |
| Length | 50 ft |
| Length | 15.2 m |
| Length | 50 ft |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | 7/16 DIN to TNC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Box (TB) | 1 | $ 185.00 | |
| 10 | $ 176.59 | |||
| 25 | $ 168.18 | |||
Description
General part information
RG214-LSZH-716M-TF(QTY:50ft)
Cable Assembly Coaxial 7/16 DIN to TNC RG-214 600.0" (15.2m) 50.0'
Documents
Technical documentation and resources
No documents available
