ZWX-715BRS5B
ActiveJoymax Electronics
ANT 5G BLADE RP-SMA PLUG FEMALE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ZWX-715BRS5B
ActiveJoymax Electronics
ANT 5G BLADE RP-SMA PLUG FEMALE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ZWX-715BRS5B |
|---|---|
| Antenna Type | Blade, Tilt |
| Applications | 5G, 4G, LTE, 3G, 2G |
| Frequency (Center/Band) | 450 MHz, 4.7 GHz, 829 MHz, 2.2 GHz, 5.5 GHz, 3.75 GHz, 657.5 MHz |
| Frequency Group | Wide Band |
| Frequency Range | 450 MHz |
| Frequency Range [Max] | 5.85 GHz, 698 MHz, 5 GHz, 2.69 GHz, 4.2 GHz, 960 MHz |
| Frequency Range [Min] | 1.71 GHz, 698 MHz, 3.3 GHz, 4.4 GHz, 617 MHz, 5.15 GHz |
| Gain | 1.9 dBi, 2.2 dBi, 0.9 dBi, 3.1 dBi, 4.3 dBi, 4.4 dBi |
| Height (Max) | 183 mm |
| Height (Max) [Max] | 7.205 in |
| Mounting Type | Connector Mount |
| Number of Bands | 8 |
| Power - Max [Max] | 1 W |
| Return Loss | -7.4 dB, -10.2 dB, -9.5 dB, -15.6 dB |
| RF Family/Standard | Cellular |
| Termination | RP-SMA Female |
| VSWR | 1.9, 2, 1.4, 2.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 7.70 | |
| 10 | $ 7.10 | |||
| 25 | $ 6.58 | |||
| 100 | $ 6.14 | |||
| 250 | $ 5.75 | |||
| 500 | $ 5.40 | |||
Description
General part information
ZWX-715BRS5B

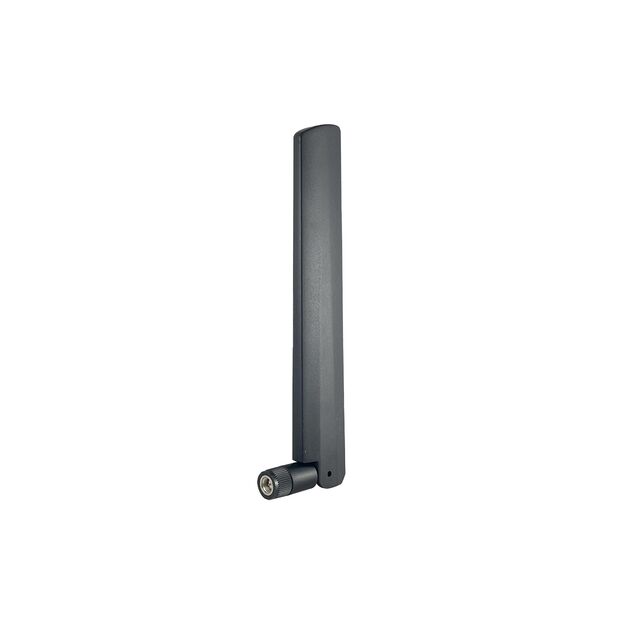

RF ANTENNA 2G, 3G, 4G, 5G, LTE Blade, Tilt RP-SMA Female Connector Mount
