845-076-542-512

Active

EDAC Inc.

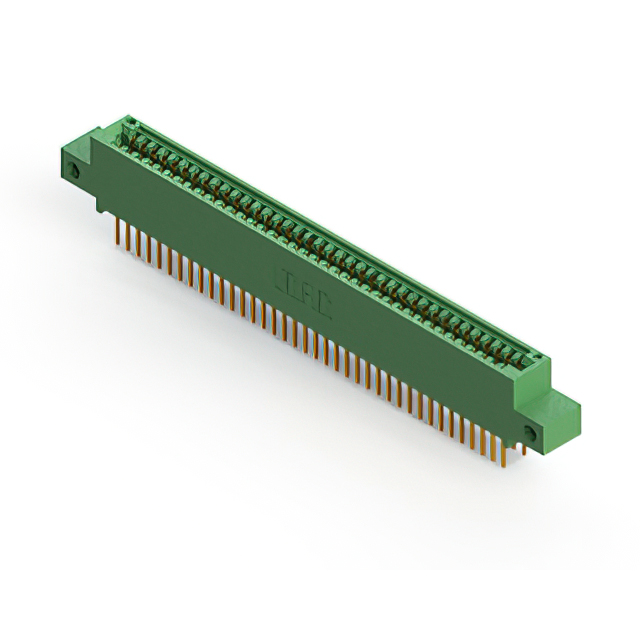

2.54MM STRAIGHT 76P -40℃~+125℃ PLUGIN,P=2.54MM EDGEBOARD CONNECTORS ROHS

Search across all available documentation for this part.

Active

EDAC Inc.

2.54MM STRAIGHT 76P -40℃~+125℃ PLUGIN,P=2.54MM EDGEBOARD CONNECTORS ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	845-076-542-512

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Side Mount Opening, Unthreaded
Flange Feature	3.25 mm
Flange Feature	0.128 in
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	76
Number of Positions/Bay/Row [custom]	38
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Wire Wrap
Termination Rows	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

76 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
