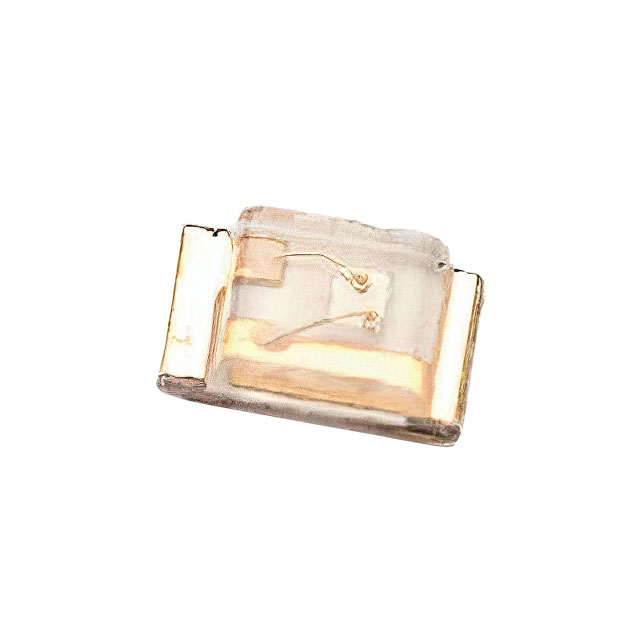

L196L-LIC-TR
ActiveAmerican Opto Plus LED
LED RED CLEAR 0603 SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
L196L-LIC-TR
ActiveAmerican Opto Plus LED
LED RED CLEAR 0603 SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | L196L-LIC-TR |
|---|---|
| Color | Red |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 0.5 mm |
| Lens Color | Colorless |
| Lens Size [x] | 1 mm |
| Lens Size [y] | 0.8 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating | 80 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [y] | 0.8 mm |
| Viewing Angle | 110 ° |
| Voltage - Forward (Vf) (Typ) | 1.95 V |
| Wavelength - Dominant | 630 nm |
| Wavelength - Peak | 642 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 4000 | $ 0.04 | |
| 8000 | $ 0.03 | |||
| 16000 | $ 0.03 | |||
| 64000 | $ 0.03 | |||
| 132000 | $ 0.03 | |||
Description
General part information
L196L-LIC-TR
Red 630nm LED Indication - Discrete 1.95V 0603 (1608 Metric)
