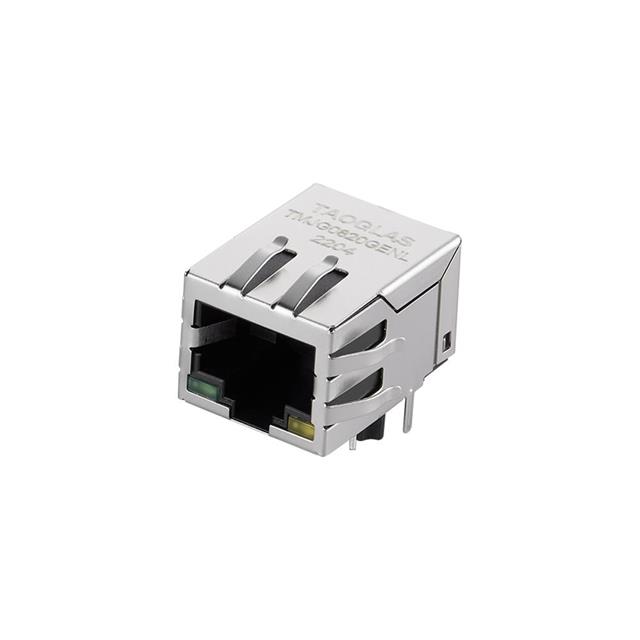

TMJG0820GENL
ActiveTAOGLAS
CONN JACK 1PORT 1000 BASE-T
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TMJG0820GENL |
|---|---|
| Applications | 1G Base-T, AutoMDIX |
| Connector Type | RJ45 |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.152 Ám |
| Contact Finish Thickness | 6 Áin |
| Contact Material | Phosphor Bronze |
| Features | Board Guide |
| Height Above Board | 13.3 mm |
| Height Above Board | 0.524 in |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| LED Color | Yellow, Green |
| Mounting Type | Through Hole |
| Number of Cores per Jack | 8 |
| Number of Ports | 1 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Orientation | 90 ° |
| Shield Material | Stainless Steel |
| Shielding | Shielded, EMI Finger |
| Tab Direction | Down |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 5.67 | |
| 100 | $ 4.62 | |||
| 500 | $ 4.45 | |||
Description
General part information
TMJG0820GENL
1 Port RJ45Through Hole 1G Base-T, AutoMDIX
