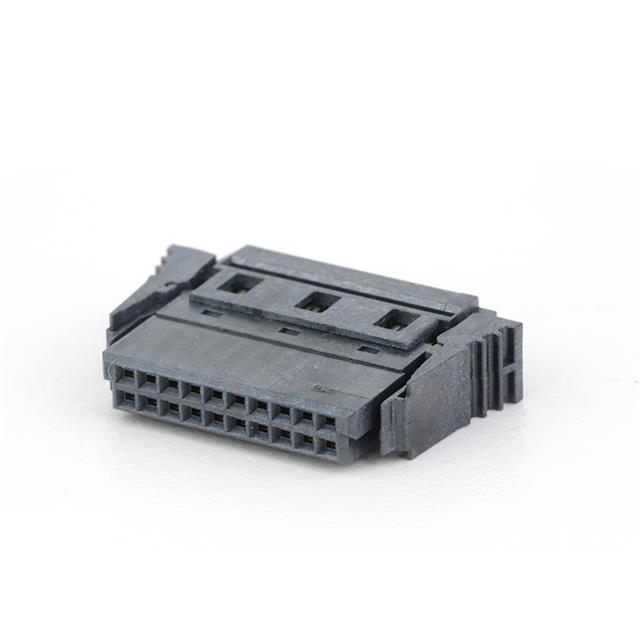

CQEA217-1077A002C1SB
ActiveGreenconn
IDC FEMALE CONNETOR TYPE B WITH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CQEA217-1077A002C1SB
ActiveGreenconn
IDC FEMALE CONNETOR TYPE B WITH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CQEA217-1077A002C1SB |
|---|---|
| Cable Termination | IDC |
| Color | Black |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Pitch [x] | 0.05 in |
| Pitch [x] | 1.27 mm |
| Row Spacing | 1.27 mm |
| Row Spacing | 0.05 in |
| Wire Type | Ribbon Cable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.72 | |
| 10 | $ 2.07 | |||
| 80 | $ 1.64 | |||
| 440 | $ 1.36 | |||
| 945 | $ 1.26 | |||
| 4900 | $ 1.07 | |||
Description
General part information
CQEA217-1077A002C1SB
20 Position Rectangular Receptacle Connector IDC
