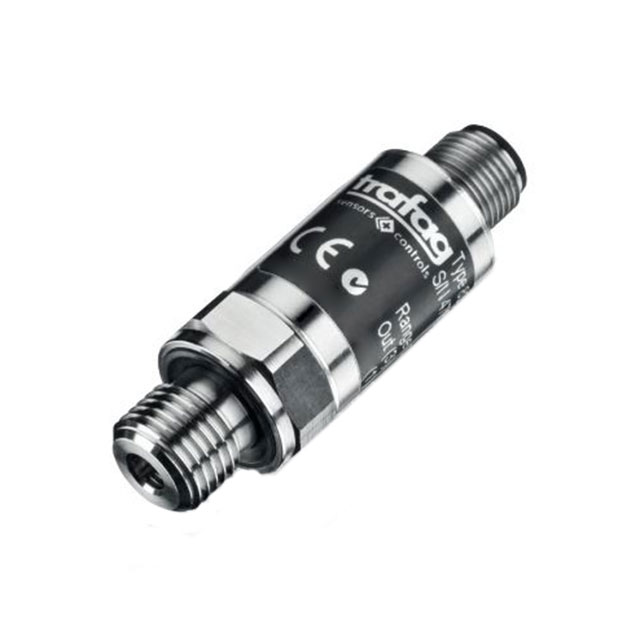

8252.H4.2542.32.19.61
ActiveTrafag Sensors and Controls
SENSOR 5000PSIG 7/16" .02A
Deep-Dive with AI
Search across all available documentation for this part.
8252.H4.2542.32.19.61
ActiveTrafag Sensors and Controls
SENSOR 5000PSIG 7/16" .02A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 8252.H4.2542.32.19.61 |
|---|---|
| Accuracy | 0.5 % |
| Maximum Pressure | 86184.47 kPa |
| Maximum Pressure | 12500 PSI |
| Operating Pressure | 34473.79 kPa |
| Operating Pressure | 5000 PSI |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output [Max] | 20 mA |
| Output [Min] | 4 mA |
| Output Type | Analog Current |
| Package / Case | Cylinder, Threaded |
| Port Size | 11.11 mm |
| Port Size | 0.4375 " |
| Port Size | UNF SAE4, Male |
| Port Style | Threaded |
| Pressure Type | Gauge |
| Termination Style | M12x1, 4 Pin |
| Voltage - Supply [Max] | 32 VDC |
| Voltage - Supply [Min] | 9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 227.69 | |
| 6 | $ 220.86 | |||
| 11 | $ 193.54 | |||
Description
General part information
8252.H4.2542.32.19.61
Pressure Sensor 5000PSI (34473.79kPa) Gauge Male - 7/16" (11.11mm) UNF SAE4 4 mA ~ 20 mA Cylinder, Threaded
Documents
Technical documentation and resources
No documents available
