32206913
UnknownYageo Nexensos

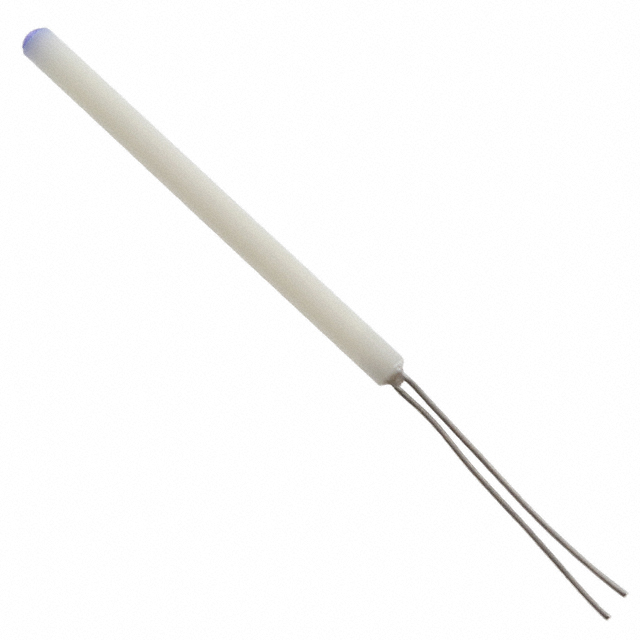

SENSOR RTD 100OHM 0.3% PROBE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 32206913 |
|---|---|
| Accuracy | 0.3 °C |
| Current | 1 mA |
| Mounting Type | Free Hanging |
| Operating Temperature [Max] | 660 °C |
| Operating Temperature [Min] | -196 °C |
| Package / Case | Cylindrical Probe, Ceramic |
| Resistance @ 0°C | 100 Ohms |
| Resistance Tolerance | 0.12 % |
| RTD Material | Platinum (Pt) |
| Temperature Coefficient | 3850 ppm/°C |
| Termination | PC Pins |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 18.60 | |
Description
General part information
32206913
100 Ohms RTD Platinum (Pt) ±0.3% 3850ppm/°C Cylindrical Probe, Ceramic
