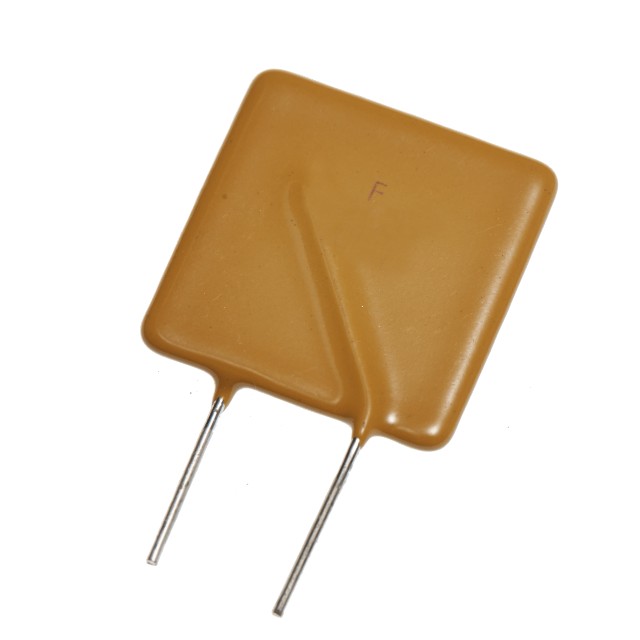

FRV025-240F
ActiveRFE/Fuzetec
RESETTABLE FUSE - PPTC RADIAL LE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FRV025-240F
ActiveRFE/Fuzetec
RESETTABLE FUSE - PPTC RADIAL LE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FRV025-240F |
|---|---|
| Approval Agency | cUL, TUV, UL |
| Current - Hold (Ih) (Max) [Max] | 250 mA |
| Current - Max [Max] | 3.5 A |
| Current - Trip (It) | 560 mA |
| Height - Seated (Max) [Max] | 0.685 " |
| Height - Seated (Max) [Max] | 17.4 mm |
| Lead Spacing | 5.1 mm |
| Lead Spacing | 0.201 in |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Disc, Radial |
| Resistance - Initial (Ri) (Min) [Min] | 1.3 Ohms |
| Resistance - Post Trip (R1) (Max) [Max] | 3.8 Ohms |
| Size / Dimension [x] | 9.6 mm |
| Size / Dimension [x] | 0.378 in |
| Size / Dimension [y] | 3.8 mm |
| Size / Dimension [y] | 0.15 " |
| Time to Trip | 18.5 s |
| Voltage - Max | 265 V |
| Voltage - Max [Max] | 240 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 0.41 | |
| 50 | $ 0.38 | |||
| 100 | $ 0.35 | |||
| 250 | $ 0.31 | |||
| 500 | $ 0.26 | |||
| 1000 | $ 0.24 | |||
| 5000 | $ 0.19 | |||
Description
General part information
FRV025-240F
PTC Resettable Fuse 240V (265V Int) 250 mA Ih Through Hole Radial, Disc
