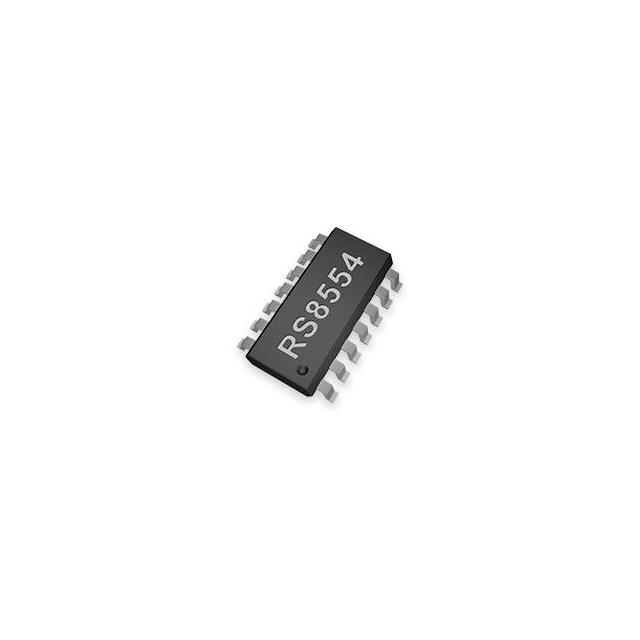

RS8554XP
ActiveRunic Technology
IC CMOS 4 CIRCUIT 14SOIC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RS8554XP |
|---|---|
| Amplifier Type | CMOS |
| Current - Input Bias | 1 pA |
| Current - Output / Channel | 50 mA |
| Current - Supply | 640 µA |
| Gain Bandwidth Product | 4.5 MHz |
| Mounting Type | Surface Mount |
| Number of Circuits | 4 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Rail-to-Rail |
| Package / Case | 14-SOIC |
| Package / Case [x] | 0.154 in |
| Package / Case [y] | 3.9 mm |
| Slew Rate | 2.7 V/µs |
| Voltage - Input Offset | 1.5 µV |
| Voltage - Supply Span (Max) [Max] | 5.5 V |
| Voltage - Supply Span (Min) [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.94 | |
| 10 | $ 2.64 | |||
| 25 | $ 2.50 | |||
| 100 | $ 2.17 | |||
| 250 | $ 2.06 | |||
| 500 | $ 1.84 | |||
| 1000 | $ 1.56 | |||
| Digi-Reel® | 1 | $ 2.94 | ||
| 10 | $ 2.64 | |||
| 25 | $ 2.50 | |||
| 100 | $ 2.17 | |||
| 250 | $ 2.06 | |||
| 500 | $ 1.84 | |||
| 1000 | $ 1.56 | |||
| Tape & Reel (TR) | 4000 | $ 1.48 | ||
Description
General part information
RS8554XP
CMOS Amplifier 4 Circuit Rail-to-Rail 14-SOIC
