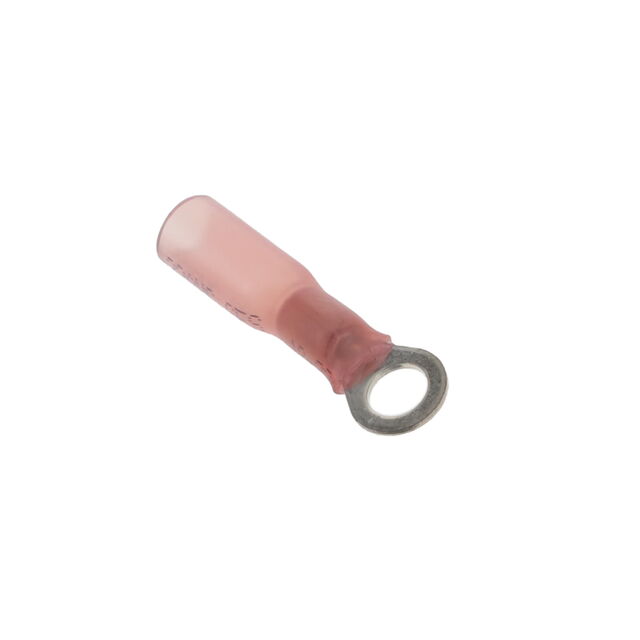

10659
ActiveMASTER APPLIANCE
18-20 AWG, RED, # 10 STUD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
10659
ActiveMASTER APPLIANCE
18-20 AWG, RED, # 10 STUD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 10659 |
|---|---|
| Color | Red |
| Features | Brazed Seam |
| Insulation | Insulated with Heat Shrink |
| Material - Insulation [custom] | Polyolefin |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 10 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Wire Gauge [Max] | 20 AWG |
| Wire Gauge [Min] | 17.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 27.49 | |
| 10 | $ 23.36 | |||
| 25 | $ 21.90 | |||
| 50 | $ 20.85 | |||
| 100 | $ 19.86 | |||
| 250 | $ 18.62 | |||
| 500 | $ 17.73 | |||
Description
General part information
10659
Ring Terminal Connector 10 Stud Circular 18-20 AWG Crimp
