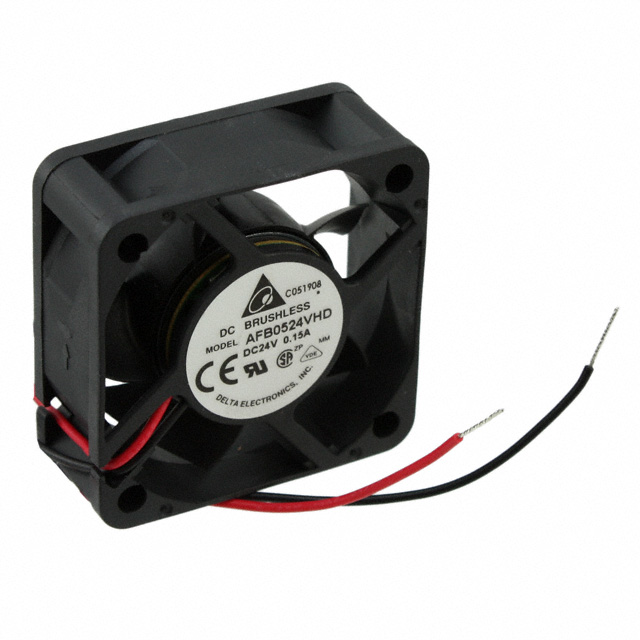

AFB0524VHD
ActiveDelta Electronics
FAN AXIAL 50X20MM 24VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
AFB0524VHD
ActiveDelta Electronics
FAN AXIAL 50X20MM 24VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AFB0524VHD |
|---|---|
| Air Flow | 20.3 CFM |
| Air Flow | 0.568 mł/min |
| Approval Agency | UL, CE, VDE, CSA |
| Bearing Type | Ball |
| Current Rating (Amps) | 100 mA |
| Fan Type | Tubeaxial |
| Lifetime @ Temp. | 70000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 40.5 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 2.4 W |
| RPM | 7000 RPM |
| Size / Dimension [x] | 50 mm |
| Size / Dimension [z] | 50 mm |
| Static Pressure | 0.303 in H2O |
| Static Pressure | 75.5 Pa |
| Termination | 2 Wire Leads |
| Voltage - Rated | 24 VDC |
| Voltage Range [Max] | 27.6 VDC |
| Voltage Range [Min] | 14 VDC |
| Weight | 38.56 g |
| Weight | 0.085 lb |
| Width [y] | 20 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.80 | |
| 10 | $ 12.90 | |||
| 25 | $ 11.70 | |||
| 50 | $ 10.80 | |||
| 100 | $ 9.45 | |||
| 252 | $ 8.85 | |||
| 504 | $ 8.25 | |||
Description
General part information
AFB0524VHD
Fan Tubeaxial 24VDC Square - 50mm L x 50mm H Ball 20.3 CFM (0.568m³/min) 2 Wire Leads
