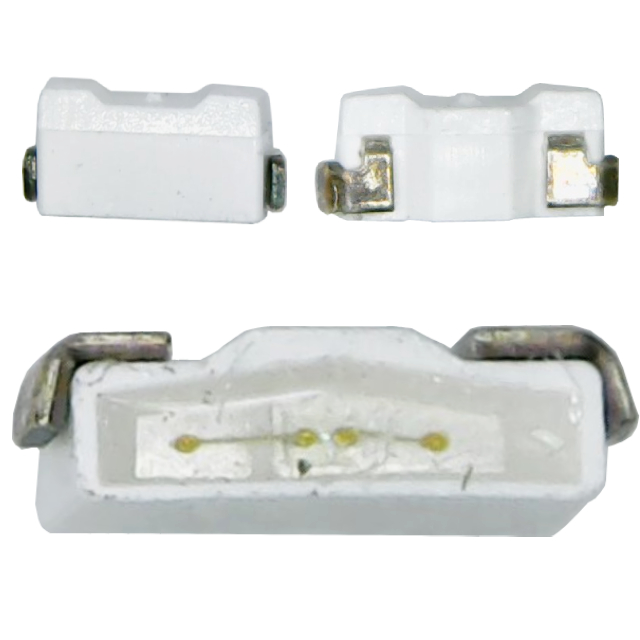

L233QEC-TR
ActiveAmerican Opto Plus LED
LED RED CLEAR SMD R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
L233QEC-TR
ActiveAmerican Opto Plus LED
LED RED CLEAR SMD R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | L233QEC-TR |
|---|---|
| Color | Red |
| Current - Test | 20 mA |
| Height (Max) [Max] | 0.9 mm |
| Lens Color | Colorless |
| Lens Style | Rectangle with Irregular Top |
| Lens Transparency | Clear |
| Millicandela Rating | 400 mcd |
| Mounting Type | Surface Mount, Right Angle |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension [x] | 2.8 mm |
| Size / Dimension [y] | 1.2 mm |
| Supplier Device Package | SMD |
| Viewing Angle | 115 ° |
| Voltage - Forward (Vf) (Typ) | 2.15 V |
| Wavelength - Dominant | 625 nm |
| Wavelength - Peak | 636 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 3000 | $ 0.18 | |
| 6000 | $ 0.17 | |||
| 12000 | $ 0.16 | |||
| 48000 | $ 0.15 | |||
| 99000 | $ 0.13 | |||
Description
General part information
L233QEC-TR
Red 625nm LED Indication - Discrete 2.15V 2-SMD, No Lead
