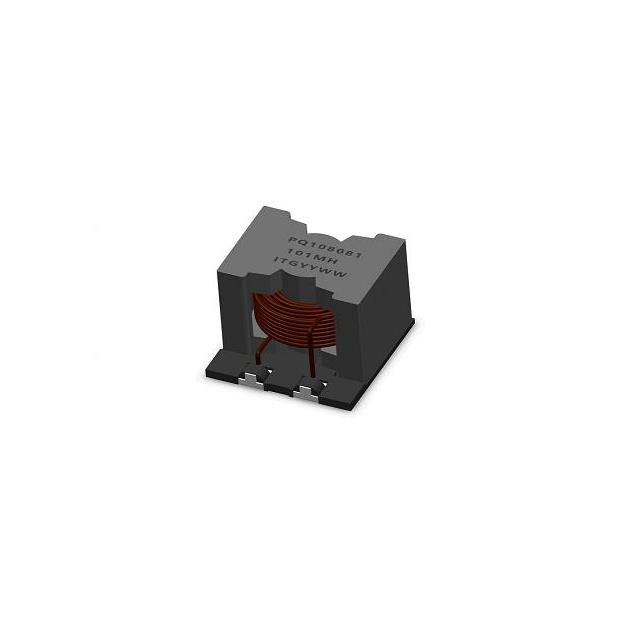

PQ108081H-331MHF
ActiveITG Electronics, Inc.
330.00UH, 20%, 69.40MOHM, 5.35A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PQ108081H-331MHF
ActiveITG Electronics, Inc.
330.00UH, 20%, 69.40MOHM, 5.35A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PQ108081H-331MHF |
|---|---|
| Current - Saturation (Isat) | 5.1 A |
| Current Rating (Amps) | 6.7 A |
| DC Resistance (DCR) | 69.4 mOhm |
| Height - Seated (Max) [Max] [z] | 20 mm |
| Height - Seated (Max) [Max] [z] | 0.787 " |
| Inductance | 330 µH |
| Inductance Frequency - Test | 300 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 130 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 3-SMD |
| Size / Dimension [x] | 1.1 " |
| Size / Dimension [x] | 27.94 mm |
| Size / Dimension [y] | 1.1 in |
| Size / Dimension [y] | 27.94 mm |
| Supplier Device Package | 3-SMD |
| Tolerance | 20 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 20 | $ 8.80 | |
| 100 | $ 6.50 | |||
Description
General part information
PQ108081H-331MHF
330 µH Drum Core, Wirewound Inductor 6.7 A 69.4mOhm 3-SMD
