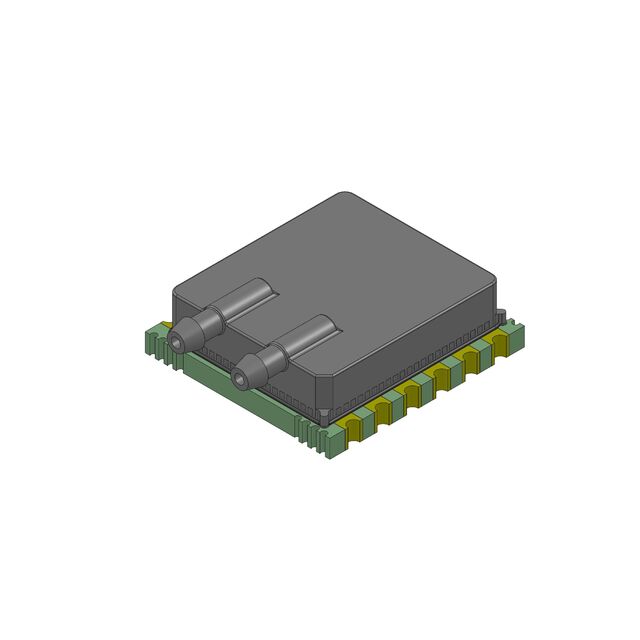

AUAV-L30D-M25125-RR-N
ActiveAmphenol All Sensors Corporation
30 INH20 250TO1250 MBARA RR LID
Deep-Dive with AI
Search across all available documentation for this part.
AUAV-L30D-M25125-RR-N
ActiveAmphenol All Sensors Corporation
30 INH20 250TO1250 MBARA RR LID
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AUAV-L30D-M25125-RR-N |
|---|---|
| Accuracy | 0.15 % |
| Applications | Board Mount |
| Features | Temperature Compensated |
| Maximum Pressure [Max] | 87 kPa |
| Maximum Pressure [Max] | 12.62 PSI |
| Mounting Type | Surface Mount |
| Operating Pressure [Max] | 125 kPa, 18.13 PSI |
| Operating Pressure [Min] | 3.63 PSI, 25 kPa |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | 24 b |
| Output Type | I2C, SPI |
| Package / Case | Dual Ports, 12-SMD, Same Side, No Lead |
| Port Size | Dual, Tube, Male |
| Port Size | 2.24 mm |
| Port Size | 0.09 " |
| Port Style | Barbed |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.68 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 76.90 | |
| 5 | $ 64.86 | |||
| 10 | $ 60.28 | |||
| 25 | $ 54.72 | |||
| 40 | $ 52.07 | |||
| 80 | $ 48.39 | |||
Description
General part information
AUAV-L30D-M25125-RR-N
Pressure Sensor 3.63PSI ~ 18.13PSI (25kPa ~ 125kPa) Absolute Male - 0.09" (2.24mm) Tube, Dual 24 b 12-SMD, No Lead, Dual Ports, Same Side
Documents
Technical documentation and resources
No documents available
