BT33L
ActiveBeRex Corp
IC AMP CDMA 100MHZ-1GHZ 24VQFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BT33L
ActiveBeRex Corp
IC AMP CDMA 100MHZ-1GHZ 24VQFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BT33L |
|---|---|
| Current - Supply [Max] | 480 mA |
| Current - Supply [Min] | 320 mA |
| Frequency [Max] | 1 GHz |
| Frequency [Min] | 100 MHz |
| Gain | 22 dBi |
| Mounting Type | Surface Mount |
| Noise Figure | 6.8 dB |
| P1dB | 33 dBm |

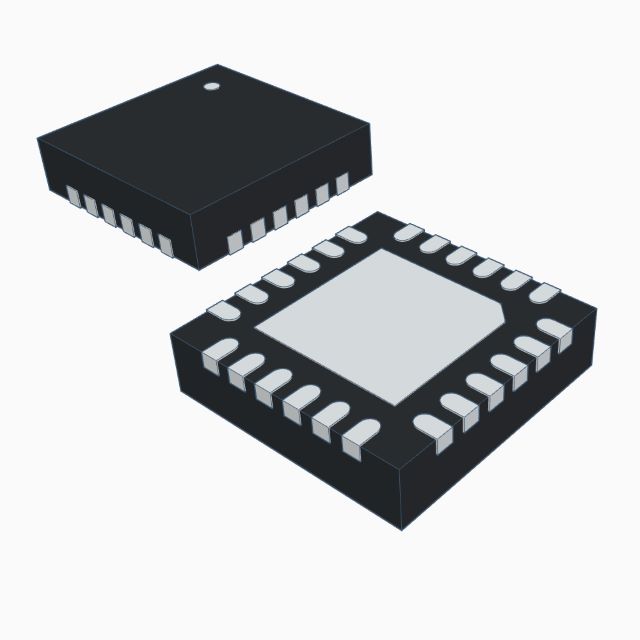

| Package / Case | 24-VQFN Exposed Pad |
| RF Type | LTE, CDMA, W-CDMA |
| Supplier Device Package | 24-VQFN (4x4) |
| Test Frequency | 700 MHz |
| Voltage - Supply [Max] | 5.25 V |
| Voltage - Supply [Min] | 4.75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 11.23 | |
| 10 | $ 10.30 | |||
| 25 | $ 9.36 | |||
| 100 | $ 8.42 | |||
| 250 | $ 7.72 | |||
| 500 | $ 7.02 | |||
| Digi-Reel® | 1 | $ 11.23 | ||
| 10 | $ 10.30 | |||
| 25 | $ 9.36 | |||
| 100 | $ 8.42 | |||
| 250 | $ 7.72 | |||
| 500 | $ 7.02 | |||
| Tape & Reel (TR) | 1000 | $ 6.32 | ||
Description
General part information
BT33L
RF Amplifier IC CDMA, LTE, W-CDMA 100MHz ~ 1GHz 24-VQFN (4x4)
