FWPQ2814L-2R2K
ActiveAllied Components International
2.2UH +/-10% FLAT WIRE SMD POWER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FWPQ2814L-2R2K
ActiveAllied Components International
2.2UH +/-10% FLAT WIRE SMD POWER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FWPQ2814L-2R2K |
|---|---|
| Current - Saturation (Isat) | 84.8 A |
| Current Rating (Amps) | 30 A |
| DC Resistance (DCR) [Max] | 1.62 mOhm |
| Frequency - Self Resonant | 50 MHz |
| Height - Seated (Max) [Max] [z] | 0.571 in |
| Height - Seated (Max) [Max] [z] | 14.5 mm |
| Inductance | 2.2 µH |
| Inductance Frequency - Test | 500 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 2-SMD, Gull Wing |
| Shielding | Shielded |
| Size / Dimension [x] | 1.102 in |
| Size / Dimension [x] | 28 mm |
| Size / Dimension [y] | 0.76 in |
| Size / Dimension [y] | 19.3 mm |
| Supplier Device Package | 2-SMD |
| Tolerance | 10 % |
| Type | Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 7.98 | |
| 5 | $ 7.75 | |||
| 10 | $ 7.50 | |||
| 15 | $ 6.98 | |||
Description
General part information
FWPQ2814L-2R2K

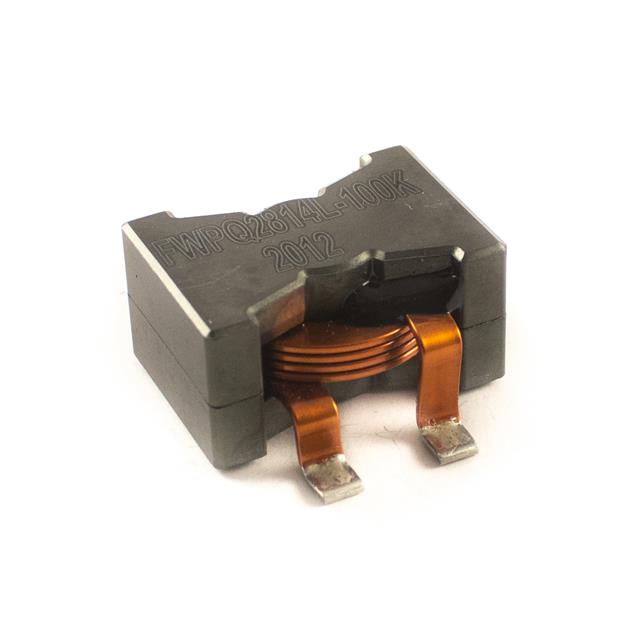

2.2 µH Shielded Wirewound Inductor 30 A 1.62mOhm Max 2-SMD, Gull Wing
