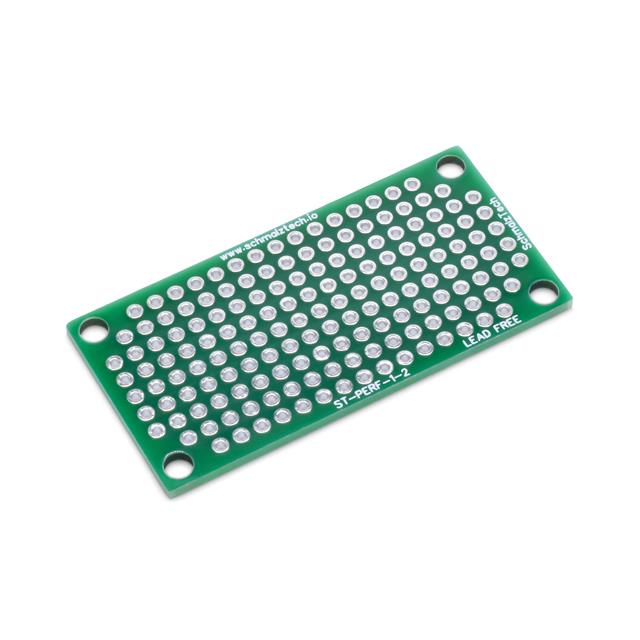

ST-PERF-1-2
ActiveSchmalzTech, LLC
BREADBOARD GENERAL PURPOSE PTH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ST-PERF-1-2
ActiveSchmalzTech, LLC
BREADBOARD GENERAL PURPOSE PTH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ST-PERF-1-2 |
|---|---|
| Board Thickness | 1.6 mm |
| Board Thickness | 0.063 in |
| Circuit Pattern | Pad Per Hole (Round) |
| Hole Diameter | 0.042 " (inches) |
| Hole Diameter | 1.07 mm |
| Material | FR4 Epoxy Glass |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Plating | Plated Through Hole (PTH) |
| Proto Board Type | Breadboard, General Purpose |
| Size / Dimension [x] | 50.8 mm |
| Size / Dimension [x] | 2 in |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 2 | $ 1.95 | |
| 20 | $ 1.89 | |||
| 80 | $ 1.79 | |||
Description
General part information
ST-PERF-1-2
Breadboard, General Purpose Plated Through Hole (PTH) Pad Per Hole (Round) 0.1" (2.54mm) Grid
