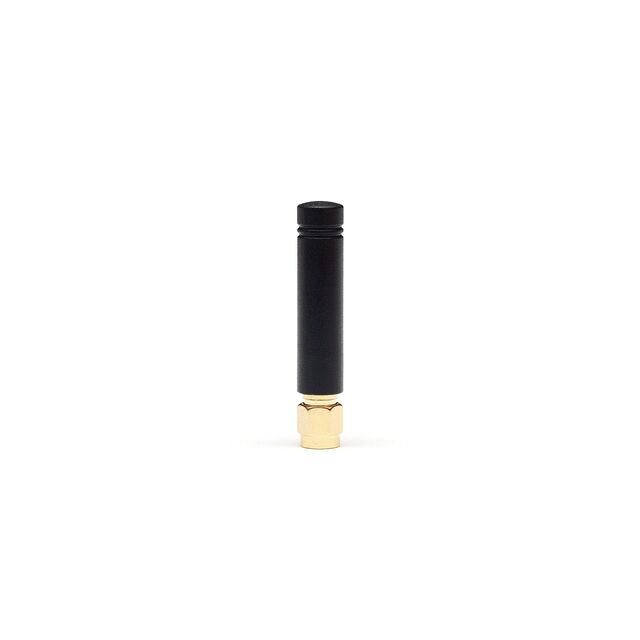

2J0B90-C885G
Active2J Antennas
DEBA 4GLTE 450 SMA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2J0B90-C885G
Active2J Antennas
DEBA 4GLTE 450 SMA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2J0B90-C885G |
|---|---|
| Antenna Type | Whip, Straight |
| Applications | LTE |
| Frequency (Center/Band) | 453 MHz |
| Frequency Group [Max] | 1 GHz |
| Frequency Group [Min] | 300 MHz |
| Frequency Range [Max] | 496 MHz |
| Frequency Range [Min] | 410 MHz |
| Gain | -1.4 dBi |
| Height (Max) [Max] | 48 mm |
| Height (Max) [Max] | 1.89 in |
| Mounting Type | Connector Mount |
| Number of Bands | 1 |
| Power - Max [Max] | 50 W |
| Return Loss | -5.5 dB |
| RF Family/Standard | Cellular |
| VSWR | 5.3 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 9.64 | |
| 10 | $ 6.53 | |||
| 25 | $ 5.71 | |||
| 100 | $ 4.78 | |||
| 250 | $ 4.33 | |||
| 500 | $ 4.28 | |||
Description
General part information
2J0B90-C885G
RF ANTENNA LTE Whip, Straight SMA Male Connector Mount
