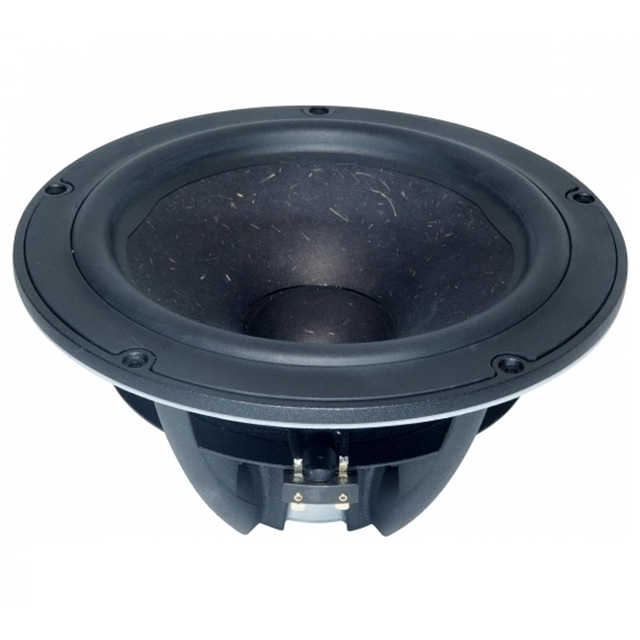

NE225W-08
ActivePeerless by Tymphany
SPEAKR 7.79OHM 160W TOP 88.4DB
Deep-Dive with AI
Search across all available documentation for this part.
NE225W-08
ActivePeerless by Tymphany
SPEAKR 7.79OHM 160W TOP 88.4DB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NE225W-08 |
|---|---|
| Efficiency - dBA | 88.4 dBA |
| Efficiency - Type | Half Space Sensitivity |
| Frequency - Self Resonant | 31.9 Hz |
| Frequency Range [Max] | 2 kHz |
| Frequency Range [Min] | 20 Hz |
| Height - Seated (Max) [Max] | 119 mm |
| Height - Seated (Max) [Max] | 4.685 in |
| Impedance | 7.79 Ohms |
| Material - Cone | Paper |
| Material - Magnet | Nd-Fe-B |
| Port Location | Top |
| Power - Rated | 160 W |
| Shape | Round |
| Size / Dimension [diameter] | 8.504 in |
| Size / Dimension [diameter] | 224.8 mm |
| Technology | Magnetic |
| Termination | Terminal Block |
| Type | Tweeter |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 500 | $ 187.22 | |
Description
General part information
NE225W-08
7.79 Ohms Tweeter Speaker 160 W 20 Hz ~ 2 kHz Top Round
Documents
Technical documentation and resources
No documents available
