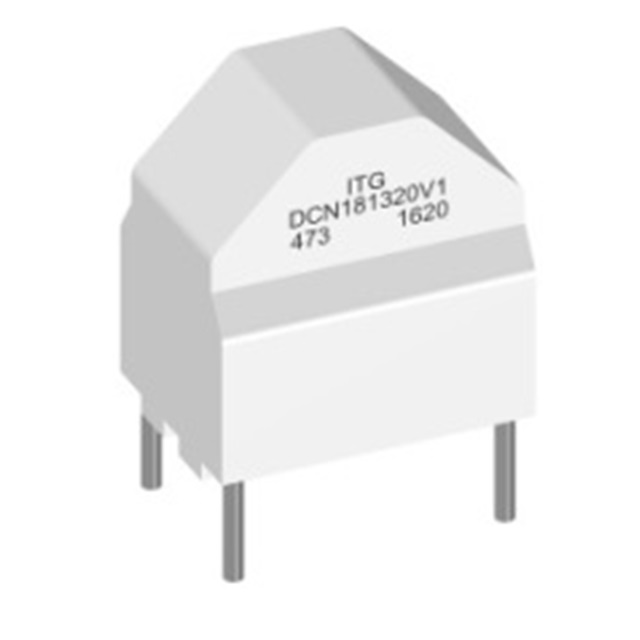

DCN181320V1-103HF
ActiveITG Electronics, Inc.
10,000UH,120MOHM, 1.4AMP DIP CMC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DCN181320V1-103HF |
|---|---|
| Current Rating (Max) [Max] | 1.4 A |
| DC Resistance (DCR) (Max) [Max] | 120 mOhm |
| Filter Type | Power Line |
| Height (Max) [Max] | 20.5 mm |
| Height (Max) [Max] | 0.807 " |
| Inductance @ Frequency | 10 mH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4 Lead |
| Package / Case | Vertical |
| Size / Dimension [x] | 18.5 mm |
| Size / Dimension [x] | 0.728 in |
| Size / Dimension [y] | 13.5 mm |
| Size / Dimension [y] | 0.531 in |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.20 | |
| 5 | $ 7.70 | |||
| 30 | $ 6.20 | |||
Description
General part information
DCN181320V1-103HF
10 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 1.4A DCR 120mOhm
