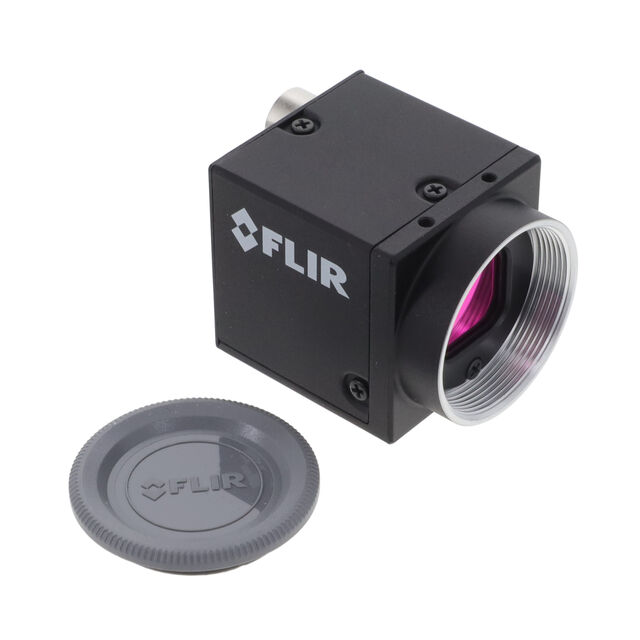

BFS-U3-16S2C-CS
ActiveFLIR Integrated Imaging Solutions, Inc.
1.6MP COLOR U3 1/2.9" CS-MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
BFS-U3-16S2C-CS
ActiveFLIR Integrated Imaging Solutions, Inc.
1.6MP COLOR U3 1/2.9" CS-MOUNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BFS-U3-16S2C-CS |
|---|---|
| Color | RGB |
| Frames per Second | 226 |
| Height (Max) [Max] [z] | 29 mm |
| Height (Max) [Max] [z] | 1.142 in |
| Interface | USB 3.1 |
| Lens Mount | CS |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Pixel Size [x] | 3.45 µm |
| Pixel Size [y] | 3.45 µm |
| Resolution [x] | 1440 |
| Resolution [y] | 1080 |
| Sensor | IMX273 |
| Shutter | Global |
| Size / Dimension [x] | 29 mm |
| Size / Dimension [x] | 1.142 inches |
| Size / Dimension [y] | 1.181 in |
| Size / Dimension [y] | 30 mm |
| Supplier Device Package | Module |
| Type | CMOS |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 371.00 | |
Description
General part information
BFS-U3-16S2C-CS
1.6MP COLOR U3 1/2.9" CS-MOUNT
Documents
Technical documentation and resources
No documents available
