AOZ8811DT-03
ObsoleteAlpha & Omega Semiconductor Inc.
TVS DIODE 3.6VWM 7VC 2DFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AOZ8811DT-03
ObsoleteAlpha & Omega Semiconductor Inc.
TVS DIODE 3.6VWM 7VC 2DFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AOZ8811DT-03 |
|---|---|
| Applications | General Purpose |
| Capacitance @ Frequency | 0.5 pF |
| Current - Peak Pulse (10/1000µs) | 6 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |

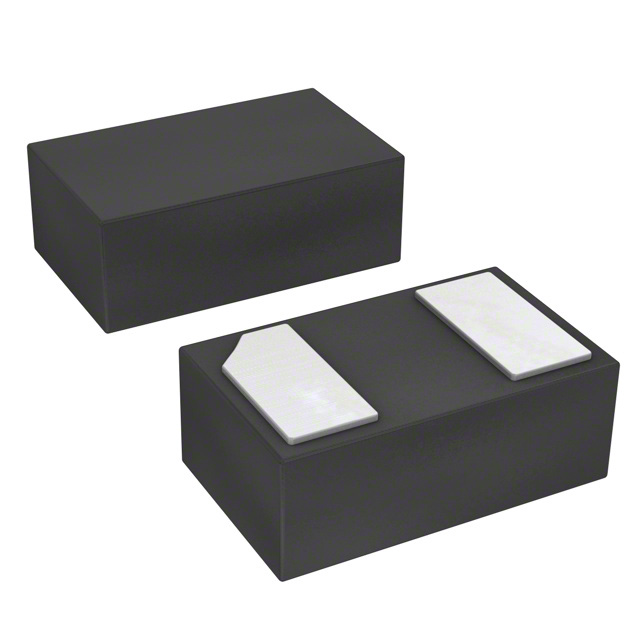

| Package / Case | 2-UDFN |
| Power - Peak Pulse | 40 W |
| Power Line Protection | False |
| Type | Zener |
| Unidirectional Channels [custom] | 1 |
| Voltage - Breakdown (Min) [Min] | 4 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 7 V |
| Voltage - Reverse Standoff (Typ) | 3.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AOZ8811DT-03
7V Clamp 6A (8/20µs) Ipp Tvs Diode Surface Mount 2-DFN (1x0.6)
