Technical Specifications
Parameters and characteristics for this part
| Specification | ELFXL40-001 |
|---|---|
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | 2.92 mm |
| Connector Type | Receptacle, Female Socket |
| Contact Termination | Compression |
| Dielectric Material | Polytetrafluoroethylene (PTFE), Polychlorotrifluoroethylene (PCTFE) |
| Features | Mounting Hardware |
| Frequency - Max [Max] | 40 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Board Edge, End Launch |
| Number of Ports | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shield Termination | Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 107.00 | |
| 10 | $ 90.00 | |||
| 25 | $ 80.00 | |||
| 50 | $ 70.00 | |||
| 100 | $ 62.29 | |||
| 250 | $ 59.53 | |||
Description
General part information

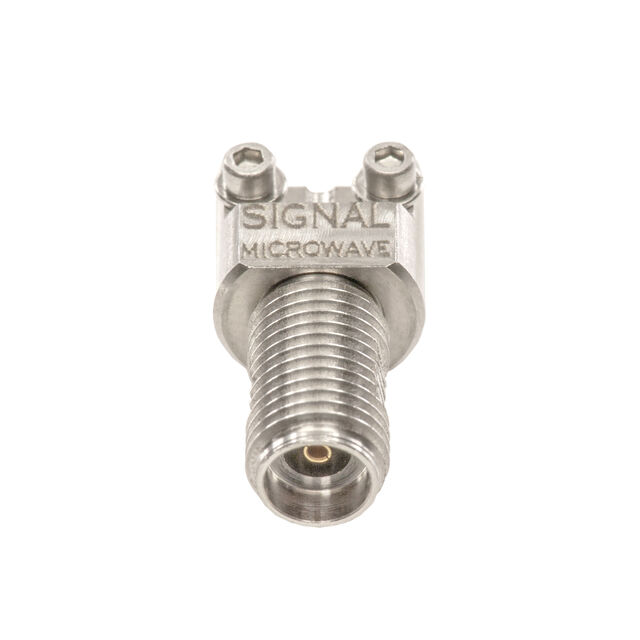

ELFXL40-001
2.92mm Connector Receptacle, Female Socket 50 Ohms Board Edge, End Launch Compression
