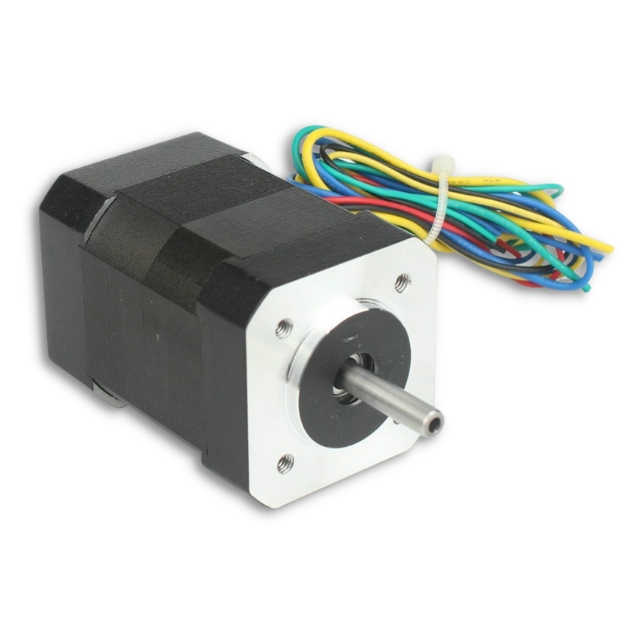

MOT-BL-42S1-24V
ActiveISL Products International
42MM BLDC MOTOR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MOT-BL-42S1-24V
ActiveISL Products International
42MM BLDC MOTOR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MOT-BL-42S1-24V |
|---|---|
| Diameter - Shaft [diameter] | 0.197 in |
| Diameter - Shaft [diameter] | 5 mm |
| Length - Shaft and Bearing | 0.866 in |
| Length - Shaft and Bearing | 22 mm |
| Motor Type | Brushless (BLDC) |
| Mounting Hole Spacing | 36 mm |
| Mounting Hole Spacing | 1.417 in |
| Power - Rated | 30 W |
| RPM | 4000 RPM |
| Size / Dimension [x] | 42.2 mm |
| Size / Dimension [x] | 1.661 " |
| Size / Dimension [y] | 1.661 " |
| Size / Dimension [y] | 42.2 mm |
| Termination Style | Wire Leads |
| Torque - Max Momentary (oz-in / mNm) | 176.52 mNm |
| Torque - Max Momentary (oz-in / mNm) | 25 oz-in |
| Torque - Rated (oz-in / mNm) | 8.85 oz-in |
| Torque - Rated (oz-in / mNm) | 62.47 mNm |
| Type | DC Motor |
| Voltage - Rated | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 56.92 | |
| 100 | $ 48.92 | |||
Description
General part information
MOT-BL-42S1-24V
Brushless (BLDC) DC Motor 4000 RPM 30W 24VDC
