CVF020W5
ActiveSauro Electronic Connectors

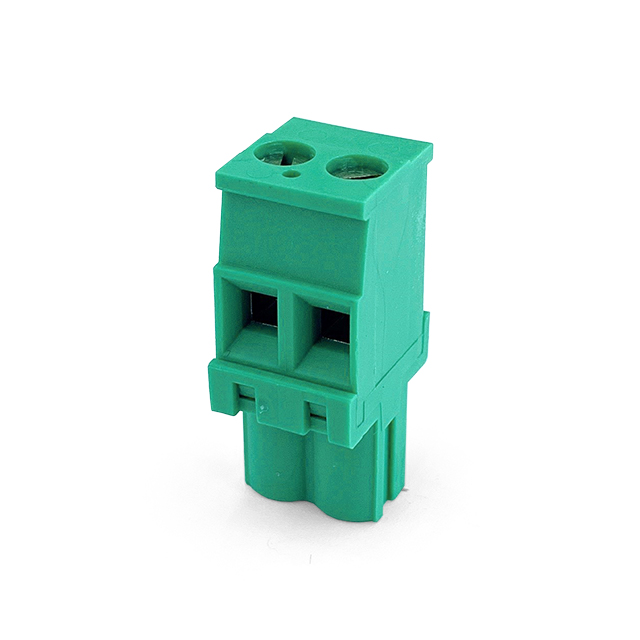

TERM BLOCK PLUG 2POS 5.08MM
Deep-Dive with AI
Search across all available documentation for this part.
CVF020W5
ActiveSauro Electronic Connectors
TERM BLOCK PLUG 2POS 5.08MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CVF020W5 |
|---|---|
| Color | Green |
| Contact Material | Copper Alloy |
| Contact Mating Finish | Tin |
| Features | Interlocking (Side) |
| Ingress Protection | IP40 |
| Insulation Height | 25 mm |
| Insulation Height | 0.984 in |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -50 °C |
| Pitch [x] | 0.2 in |
| Pitch [x] | 5.08 mm |
| Plug Wire Entry | 90 ° |
| Positions Per Level | 2 |
| Screw Size | M3 |
| Termination Style | Screw - Rising Cage Clamp |
| Torque - Screw [Max] | 0.6 Nm |
| Torque - Screw [Max] | 5.3 Lb-In |
| Torque - Screw [Min] | 4.4 Lb-In |
| Torque - Screw [Min] | 0.5 Nm |
| Type | Plug |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG [Max] | 30 AWG |
| Wire Gauge or Range - AWG [Min] | 12 AWG |
| Wire Gauge or Range - mm² [Max] | 2.5 mm² |
| Wire Gauge or Range - mm² [Min] | 0.05 mm² |
| Wire Strip Length [Max] | 7.5 mm |
| Wire Strip Length [Min] | 6 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.96 | |
| 10 | $ 1.62 | |||
| 50 | $ 1.55 | |||
| 100 | $ 1.48 | |||
| 250 | $ 1.42 | |||
| 500 | $ 1.35 | |||
Description
General part information
CVF020W5
2 Position Terminal Block Plug 0.200" (5.08mm) 90° Free Hanging (In-Line)
