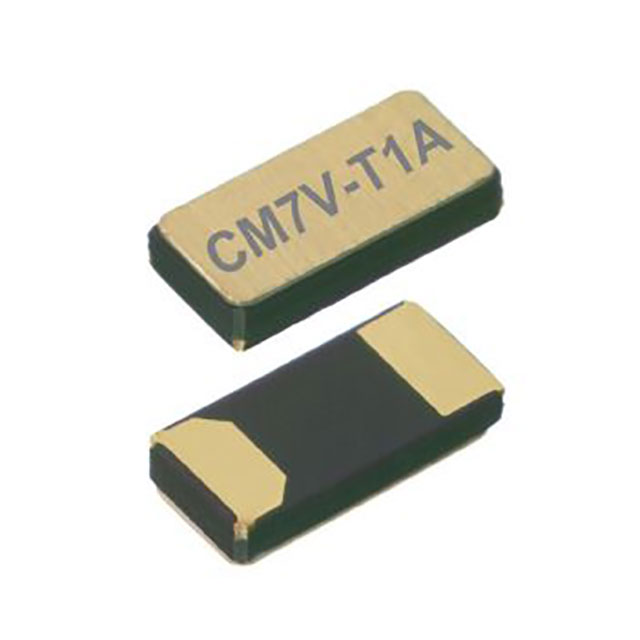

CM7V-T1A-32.768KHZ-9PF-20PPM-TA-QA T3
ActiveMicro Crystal AG
CRYSTAL 32.768KHZ SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CM7V-T1A-32.768KHZ-9PF-20PPM-TA-QA T3
ActiveMicro Crystal AG
CRYSTAL 32.768KHZ SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CM7V-T1A-32.768KHZ-9PF-20PPM-TA-QA T3 |
|---|---|
| ESR (Equivalent Series Resistance) | 70 kOhms |
| Frequency | 32.768 kHz |
| Frequency Tolerance | 20 ppm |
| Height - Seated (Max) [Max] | 0.026 in |
| Height - Seated (Max) [Max] | 0.65 mm |
| Load Capacitance | 9 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 2-SMD, No Lead |
| Ratings | AEC-Q200 |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [y] | 1.5 mm |
| Size / Dimension [y] | 0.059 " |
| Supplier Device Package | 2-SMD |
| Supplier Device Package [x] | 3.2 |
| Supplier Device Package [y] | 1.5 |
| Type | kHz Crystal (Tuning Fork) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1000 | $ 0.39 | |
Description
General part information
CM7V-T1A-32.768KHZ-9PF-20PPM-TA-QA T3
32.768 kHz ±20ppm Crystal 9pF 70 kOhms 2-SMD, No Lead
